- CO2 BEX - UniBET Series
- Model:
- 品牌:Optogama
產品特色Features

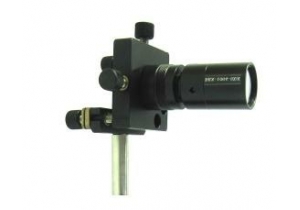

UniBET series Beam Expander is developed for higher power CO2 laser 100-200w without water cool.
With consistence in outer dimension and connecting thread M30x1, UniBET series provide customer convenience and wide range of fixed magnification from 1.5X up to 10X. It has input clear aperture 20mm and output clear aperture 28mm.
Products
| Part No. | Magnification | Input CA (mm) | Output CA (mm) | Length (mm) | Max. OD (mm) |
| BET0101.5 | 1.5 | 23.0 | 28.0 | 75.2 | 37.6 |
| BET0102A | 2.0 | 23.0 | 28.0 | 75.0 | 37.6 |
| BET0102.5 | 2.5 | 23.0 | 28.0 | 75.6 | 37.6 |
| BET0103A | 3.0 | 23.0 | 28.0 | 69.5 | 37.6 |
| BET0104A | 4.0 | 23.0 | 28.0 | 75.0 | 37.6 |
| BET0105A | 5.0 | 23.0 | 28.0 | 72.0 | 37.6 |
| BET0106A | 6.0 | 23.0 | 28.0 | 72.0 | 37.6 |
| BET0107A | 7.0 | 23.0 | 28.0 | 78.5 | 39.6 |
| BET0108A | 8.0 | 23.0 | 29.8 | 82.0 | 39.6 |
| BET0110A | 10.0 | 18.0 | 30.0 | 88.0 | 39.6 |
