PCB-mounted Laser Detector
Diameter: 35mm
Sensitvity: >70mV/W

Features

• - Laser Detector on a metal-core PCB (acts as heat sink), no thermal integration needed
• - Absolute power sensing of lasers down to 10 µW
• - Simple, compact and robust mounting
• - Sensitive to all wavelengths from UV to MIR
• - Wide power range from µW to W
• - Thermal background compensation
• - Optional: integrated NTC or platinum thermistor
• - Available with NIST/PTB traceable calibration

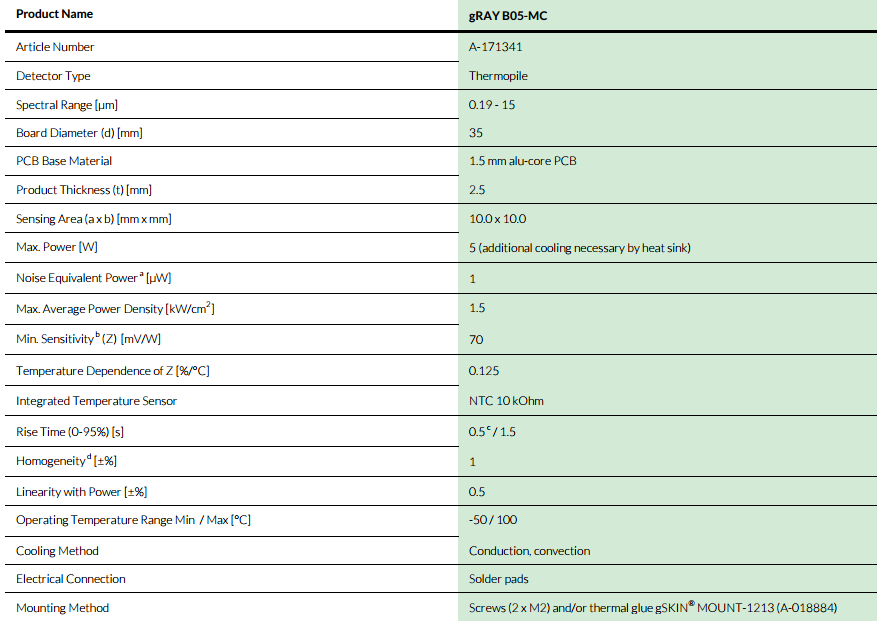

Datasheet Download → gRAY B05-MC

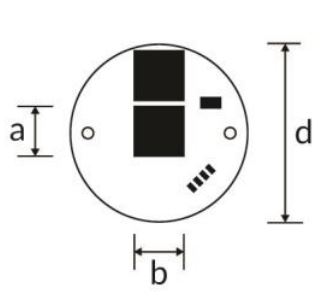

   Drawing of  gRAY B05-MC
