PCB-mounted Laser Detector
Sensing area: 10.0mm x 10.0mm
Sensitvity: >40mV/W

Features

• - gRAY Laser Detector on a metal-core PCB (acts as heat sink), no thermal integration needed
• - 100 µW to 5 W power range
• - Sensitive to all wavelengths from UV to MIR
• - Integrated NTC thermistor
• - Simple, compact and robust mounting
• - Optional: NIST/PTB traceable calibration

Datasheet Download → gRAY B05-SMC

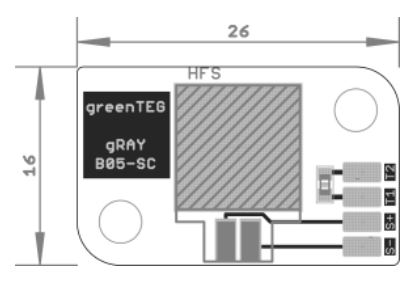

  Drawing of gRay-B05 SMC
