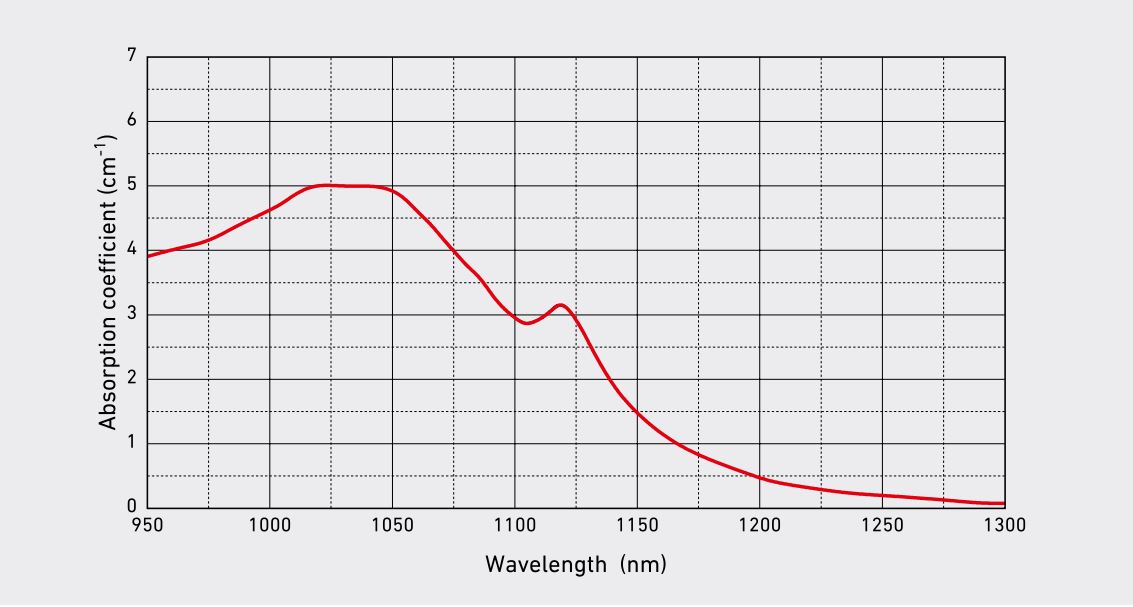

Cr4+:YAG crystal is an ideal material for passive Q-switching of Nd:YAG and other Nd- or Yb-doped lasers in the wavelength range of 0,8 to 1,2 μm. One of the remarkable features of Cr4+:YAG is its high damage threshold of 500-1000 MW/cm2. Its absorption band extends from 800 nm to 1200 nm and peaks at around 1060nm with a very large absorption cross-section.

Main features

• High damage threshold of 500-1000 MW/cm2
• High chemical stability and reliability
• Long life time and good thermal conductivity
• Compact passive Q-Switch
• Being easy to be operated

Application examples

• Passively Q-switched lasers for laser rangefinders, LIDAR and LIBS systems
• Laser systems where short pulses are required.
