F-theta Lens (Jenoptik)廠商, F-theta Lens (Jenoptik)台灣代理商公司│維佳科技

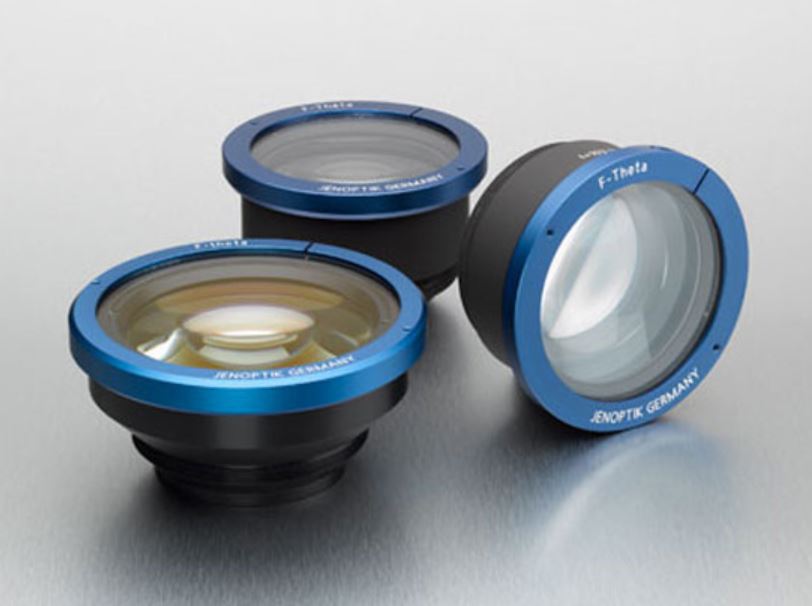

F-theta Lens (Jenoptik)
Model:
品牌:Jenoptik

產品特色Features

Jenoptik’s product portfolio contains a range of standard lenses for laser material processing. The JENar® F-theta lenses are used with UV, VIS and IR laser wavelengths. For high-power laser applications a new series of Fused-Silica F-Theta Lenses with distinctly higher damage threshold for different wavelengths is available.

The lenses are available at short notice, and are supplied with protective glass included. In order to ensure optimal customer support, we also provide STEP files on request. This enables quick and easy constructional integration of JENar® F-theta lenses into any system.

Datasheets

heta Lens JENar™	Wavelength [nm]	Order Number	Data Sheet (DB) 017700*-
100-1030...1080-93	1030...1080	017700-024-26	DB *-024-26
125-1030...1080-80	1030...1080	017700-003-26	DB *-003-26
125-1030...1080-80 + VIS ¹⁾	1030...1080	601926	DB 601926
160-1030...1080-170	1030...1080	017700-019-26	DB *-019-26
160-1030...1080-170 + VIS ¹⁾	1030...1080	601914	DB 601914
170-1030...1080-170	1030...1080	017700-018-26	DB *-018-26
255-1030...1080-239	1030...1080	017700-017-26	DB *-017-26
255-1030...1080-239 + VIS ¹⁾	1030...1080	601948	DB 601948
350-1030...1080-452	1030...1080	017700-009-26	DB *-009-26
347-1030...1080-354	1030...1080	017700-022-26	DB *-022-26
347-1030...1080-355 - NEW	1030...1080	609661	DB 609661
420-1030...1080-420	1030...1080	017700-021-26	DB *-021-26
102-515...540-75	515...540	017700-202-26	DB *-202-26
108-515...540-75	515...540	017700-203-26	DB *-203-26
100-515...540-90	515...540	017700-209-26	DB *-209-26
170-515...540-160	515...540	017700-206-26	DB *-206-26
255-515...540-233	515...540	017700-205-26	DB *-205-26
330-515...540-347	515...540	017700-208-26	DB *-208-26
420-515...540-420	515...540	017700-207-26	DB *-207-26
53-355-24	355	017700-401-26	DB *-401-26
