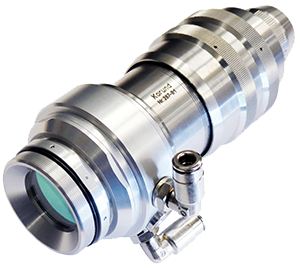

- Korund_1070
- Model: Korund_50_D20_1070/Korund_120_D30_1070
- 品牌:Adloptica
產品特色Features
Collimators for Multi-kW Lasers
- Focal lengths (EFL) 50, 80, 100, 120 mm
- High transmission
- Clear aperture (CA) up to 30 mm
- Reduced thermal focus shift
- Spectrum: 1020 - 1100 nm, other wavelengths by request
Applications:
- Cutting
- Cladding
- Welding
- Hardening
- Applications based on fiber lasers and fiber-coupled lasers
產品規格Specifications
| Common | ||||||||
| Description | collimators for fiber lasers and fiber-coupled solid-state and diode lasers made of sapphire lenses providing reduced thermally induced focus shift and aberrations adjustable Fiber End Position (FEP) | |||||||
| Spectral band | 1020 - 1100 nm | |||||||
| Input beam divergence | - maximum full beam angle 0.25 rad - minimum 1/e² full angle 0.08 rad |
|||||||
| Optical Performance | - diffraction limited in working spectral band - angular field of view ± 1° - allowed off-axis shift of the fiber end ± 1 mm |
|||||||
| Mounting | - External thread - Adaptor with QB fiber connector mount (D2-9626x01) - correction of the Fiber End Position (FEP) along the optical axis |
|||||||
| Water cooling | - through 6-1/8 fittings - coating of water cooling channel: Al oxide |
|||||||
| Model | EFL, mm | output CA, mm | Laser power, kW | Range of the FEP along Z-axis, mm | Ø, mm | Length, mm | Mounting thread | Weight, kg |
| Korund_120_D30_1070 | 120 | 30 | < 6 | ± 9 | 67 | < 186 | M47 x 0.75 | < 1.4 |
| Korund_100_D30_1070 | 100 | |||||||
| Korund_80_D30_1070 | 80 | |||||||
| Korund_50_D20_1070 | 50 | 20 | < 4 | ± 5 | < 63 | < 146 | M30 x 0.75 | < 1 |
