- PRONTO-SI 攜帶式光電二極體雷射功率計
- Model: PRONTO-SI
- 品牌:
產品特色Features

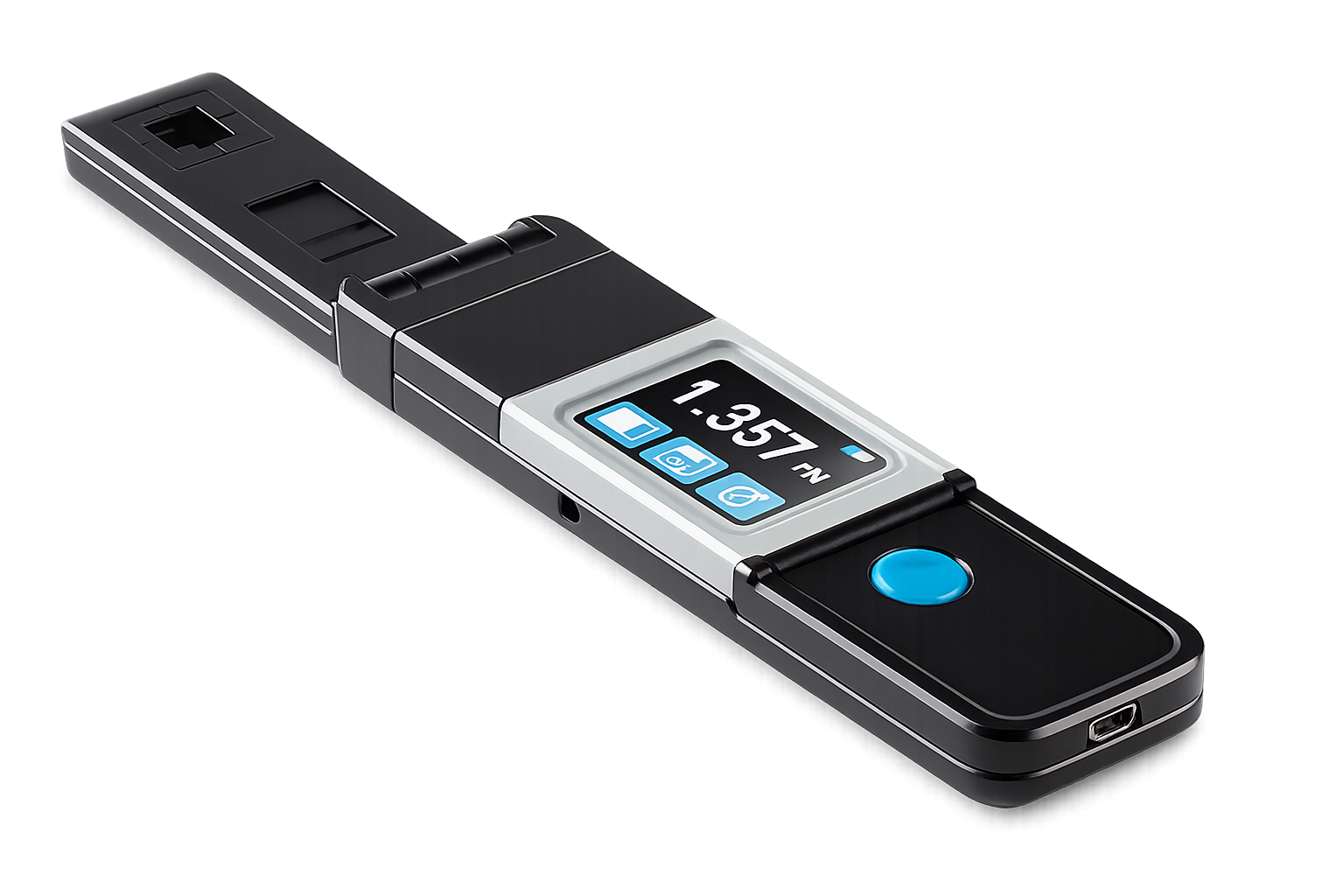

Pronto-SI 攜帶式光電二極體雷射功率計（觸控螢幕操作）
PRONTO-SI 量測功率最高可達 800 mW，主要特色如下：
• 口袋尺寸、體積小巧，方便攜帶與現場量測
• 感測器部分厚度僅 6 mm
• 觸控式彩色 LCD 顯示螢幕，操作簡便
• 雜訊等級僅 10 pW，可量測低至 0.3 nW 的雷射功率
• 內建 OD1 衰減濾光片，將濾光片滑至 ON，即可量測最高 800 mW 的連續波功率
• 可依應用需求設定量測波長、螢幕亮度與螢幕顯示方向
• 量測數據可儲存於內建記憶體，並透過 USB 至電腦管理與分析資料
產品規格Specifications
| Model | PRONTO-SI | |
| MEASUREMENT CAPABILITIES | ||
| Maximum average power | 800 mW | |
| Minimum average power | 200 pW | |
| Noise Equivalent Power | 10 pW | |
| Spectral range | 320 - 1100 nm | |
| Typical rise time | 0.2 sec | |
| Power calibration uncertainty |
±6.0 % (320 - 399 nm) ±2.0 % (400 - 449 nm) ±1.5 % (450 - 809 nm) ±2.0 % (810 - 899 nm) ±4.0 % (900 - 1009 nm) ±7.5 % (1010 - 1100 nm) |
|
| Attenuator | Integrated Slide-In OD1 Attenuator | |
| Minimum repetition rate | 100 Hz | |
| CONTINUOUS POWER MODE |
||
| Response time | 0.2 sec | |
| DAMAGE THRESHOLDS | ||
| Maximum average power density | 100 W/cm² | |
| CONTROLLER AND GUI SPECIFICATIONS | ||
| Battery type | Rechargeable Li-ion | |
| Battery life | 17 hours or 4,200 measurements (with brightness set at 25%) | |
| Display resolution | 1 pW | |
| Display size | 28.0 x 35.0 mm (128 x 160 pixels) | |
| Display type | Touch Screen Color LCD | |
| Backlight | Adjustable | |
| Internet upgrades via | USB | |
| Data storage | 50,000 pts | |
| Battery recharge via | USB | |
| PHYSICAL CHARACTERISTICS | ||
| Aperture width | 10 mm | |
| Aperture height | 10 mm | |
| Absorber | Si | |
| Dimensions | 41.0W x 216.2L x 15.8D mm | |
| Weight | 150 g | |
| Mounting holes | 1 x 8-32 | |
