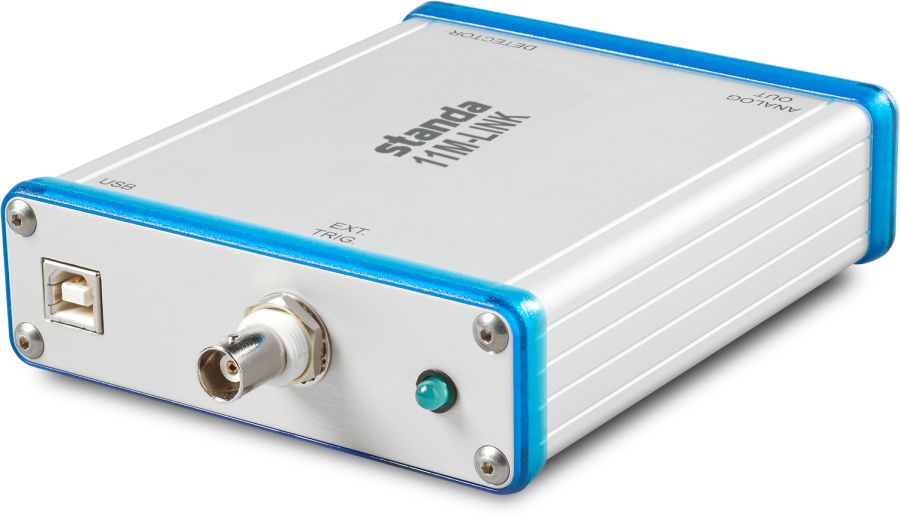

11M-LINK - Universal Laser Power & Energy Meter   通用型雷射功率與能量量測儀

11M-LINK 為一款電腦端（PC-Based）量測模組，可支援所有類型的感測器，包括熱電堆（Thermopile）、焦電感測器與光電偵測器，同時可進行功率與能量量測。本裝置為單通道設計，透過 USB 2.0 介面可直接與電腦連接，並隨附 LabView 控制軟體，具備完整的量測與分析功能。11M-LINK 採用獨特的數位降噪技術，大幅降低低能量區間的雜訊，使量測範圍可延伸至飛焦耳（fJ）等級，提供前所未有的靈敏度。

 主要特色

  •  通用型量測介面，支援所有感測頭
      功率：熱電堆、光電偵測器、焦電感測器
     能量：熱電堆（單次觸發模式）、光電偵測器、焦電感測器

  •  極低能量量測能力
      採用專利級數位降噪演算法，可準確偵測至 fJ（飛焦耳）能量等級。

  •  外部觸發輸入
      可與脈衝雷射或數位斬波器同步運作。

  •  數位化輸出
     模組可直接透過 USB 介面 與電腦連線操作。

  •  LabView 軟體支援
     具備完整控制與顯示功能，包括：量測設定（量程、觸發、波長等）、即時顯示：J / J·cm⁻² 或 W / W·cm⁻²、統
    計分析：最大值、最小值、平均值、標準差、RMS 穩定度、重複頻率等、圖形化顯示，即時曲線圖、直方圖、調
    諧指針等、資料收集與分析功能

This new PC-Based monitor is compatible with ALL types of detectors - including thermopiles, pyroelectrics and photo detectors - for both power and energy measurements. The device is available as a single channel unit that directly interfaces with a computer using a USB2.0 connection. The LabView software is included and comes with all the necessary features. The 11M-LINK also presents a unique digital technique of suppressing the noise, thereby extending the measurement range all the way down to the fJ level.

 Main Features

  •  The Universal Meter Reads ALL Heads:
     Power: Thermopiles, Photo Detectors and Pyroelectrics
     Energy: Thermopiles (in single shot mode), Photo Detectors and Pyroelectrics

  •  Measure fJ Energy Levels.
     Thanks to a unique digital method for suppressing the noise on the lower ranges.

  •  External Trigger.
      Synchronize you M-LINK to your pulsed laser or digital chopper.

  •  Digital (USB) Output.
      Connect the M-LINK module directly to your PC.

  •  Powerful LabView Software. Features include:
     Complete instrument controls: Range, Trigger, Wavelength, etc.
    Live display in J and J/cm2 or W and W/cm2
    Full Statistics: Min, Max, Mean, Standard Deviation, RMS Stability, Repetition Rate, etc.
    Graphic Displays: Strip Chart, Histogram, Tuning Needle and more
    Data File Collection and Analysis
