- 11MAESTRO - Laser Power / Energy Monitor
- Model: 11MAESTRO
- 品牌:Standa
.jpg)

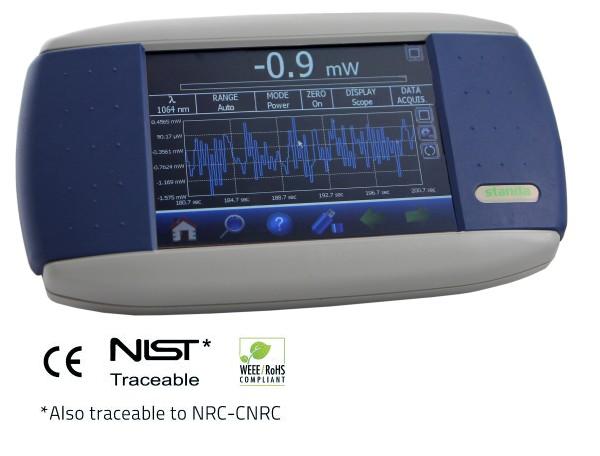

11MAESTRO - Laser Power / Energy Monitor 雷射功率／能量監測儀
• 支援多種感測頭
功率量測：熱電堆、光偵測器、熱釋電感測器
能量量測：熱電堆（單次脈衝模式）、光偵測器、熱釋電感測器
• 直覺化操作介面
操作簡單、導覽直覺，支援多種顯示模式：單圖或雙圖顯示、主功能快速存取、功能搜尋工具、多語系介面支援
• USB 儲存支援
可直接將量測資料儲存至USB隨身碟，方便資料備份與分析
• 多種輸出介面
支援 USB 隨身碟、類比輸出、RS-232、PC-USB、Ethernet (乙太網路) 等多種連線方式，方便整合至各式量測系統
• 即時統計分析功能
內建多項統計運算：最大值、最小值、平均值、標準差、均方根、峰對峰穩定度、脈衝計數與重複頻率
• 高解析度觸控螢幕
配備 5.6 吋彩色觸控螢幕：解析度 640 × 480、18 位元真彩色色深、全功能觸控操作
• Read All Heads
Power: Thermopiles, Photo Detectors and Pyroelectrics
Energy: Thermopiles (in single shot mode), Photo Detectors and Pyroelectrics
• Intuitive User Display
Easy to navigate interface, with many display features: single or dual graph display, instant access to the main functions,
function search tool, interface available in multiple languages
• USB Key Access
Store data directly on a USB key
• Available Outputs
USB Key, Analog Output, RS-232, PC-USB, Ethernet
• Real-time statistical functions
Max, Min, Average, Standard Deviation, RMS and PTP Stability, Pulse # and Repetition Rate
• Large touch screen color display
5.6” Diagonal, 640 x 480 Resolution, 18bit Color, FULLY Touch Screen Controls
| Monitor | 11MAESTRO |
| Detector Types | ALL MODELS: Thermopiles, Pyroelectrics, Photo Detectors |
| Display | Touch Screen 5.6in Color LCD |
| POWER METER SPECIFICATIONS | |
| Power Range | |
| Thermopile | 1 µW to 30 kW |
| Photo Detector | 4 pW to 3 W |
| Monitor Accuracy | 0.25 % ± 5 µV best scale |
| Statistics | Current Value, Max, Min, Average, Standard Deviation, RMS & PTP Stability, Time |
| ENERGY METER SPECIFICATIONS | |
| Energy Range | 30 fJ to 30 kJ |
| Monitor Accuracy | ±1 % best scale |
| Software Trigger Level | 0.1 to 99.9 %, 0.1 % resolution, default 2 % |
| Repetition Rate | 2 000 Hz / 10 000 Hz in sampling |
| Real Time Data Transfer | (To USB key) 2 000 Hz |
| Statistics | Current Value, Max, Min, Average, Std Dev., RMS & PTP Stability, Pulse #, Rep. Rate and Avg Power |
| DETECTOR COMPATIBILITY | |
| Thermopile | Average Power & Single Shot Energy |
| Photo | Detector Average Power & Pulse Energy |
| Pyroelectric | Pulse Energy & Average Power |
| GENERAL SPECIFICATIONS | |
| Interface Languages | English, German, French and Japanese (Chinese to come) |
| Digital Display Size | 112.9 x 84.7 mm LCD - 640 x 480 pixels |
| Data Display | Real Time, Scope, Statistics, Digital Tuning Needle and Averaging |
| Analog Output | 0-1 Volt, Full Scale, ±0.5 % |
| Rising Edge External Trigger | TTL Compatible, 2-25 V @ 0.4 mA |
| Serial Commands | Via USB (standard), Ethernet or RS-232 (cable in option) |
| Internet Upgrades | Via USB key |
| Data Storage | Via USB key |
| Dimensions | 210W x 122H x 45D mm |
| Weight | (With Batteries) 0.67 kg |
| Battery Type | 4 x Rechargeable 1.2 V Ni-MH AA |
| Battery Life | 6.5 hours |
| External Power Supply | 100/240 VAC 50-60 Hz to 9 VDC 1.66 A |
