- Impact Pockel Cells
- Impact Pockel Cells

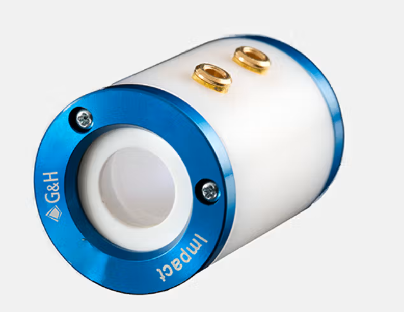

- Model: Impact 8
- 品牌:Gooch & Housego
.png)
維佳科技推出雷射及週邊零組件商品限時優惠,
全新體驗此產品享有7日試用高品質光學零件。
活動數量有限價格划算、可開立發票、此產品無保固。
詳情也歡迎您來電詢問04-22603233 或Email給我們: [email protected]
GMore than 98.5% transmission over the 300–1100 nm wavelength range with active apertures ranging 8–13 mm, and an intrinsic contrast ratio of >4000:1.
Options
Threaded HV connectors
12345647
Applications
Q-switching, Pulse-picking, Attenuation, Power control
Key features
- Highest purity KD*P 99% grown by G&H in the USA.
- Intrinsic contrast ratio >4000:1 (37 dB intracavity loss when flashlamp-pumping)
- Voltage contrast ratio >3500:1 (34 dB pulse picking efficiency)
- LIDT >10 J/cm² (1064 nm, 10 ns pulse length, 10 Hz repetition rate)
- Nitrogen backfilled ensuring long lifetime
|
SPECIFICATION |
|
|
Optical material |
KD*P |
|
Wavelength |
300–1100 nm |
|
Material purity |
99% |
|
Contrast Ratio |
>4000:1 |
|
Active Aperture |
8–13 mm |
|
Repetition Rate |
1 kHz |
|
Single pass insertion loss |
<1% @ 1064 nm |
|
Voltage contrast ratio (VCR) |
>3500:1 @ 1064 nm (parallel polarizers) |
|
Single Pass Distortion |
<λ/10 @ 1064 nm |
|
Capacitance (DC) |
6 pF |
|
DC quarter-wave voltage |
3.5 kV @ 1064 nm |
|
LIDT |
> 10 J/cm² (1064 nm, 10 ns pulse, 10 Hz, 1 mm diameter) |
Drawing of Impact 8
