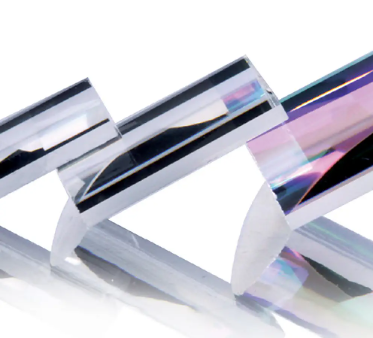

asphericon offers aspheric cylinders in plano-convex, plano-concave, bi-concave or bi-convex shapes and with both spherical and aspheric rear surfaces.
Benefit from the following specifications of our customized and stocked acylinders.
規格 |
客製 圓柱鏡片 |
庫存 圓柱鏡片 |
尺寸 | Up to 200 mm × 96 mm |
10 mm × 10 mm 50 mm × 50 mm |
RMS 不規則性 (RMSi ) | 20 nm | ≤ 500 nm |
表面缺陷(刮痕/凹坑) | 20 - 10 | 60 - 40 |
鍍膜 | 客製規格 | 3 標準塗層1 |
雷射損傷閾值 | 客製規格 | 12 J/cm²,100 Hz,6ns,532 nm |
全表面干涉測量 | 可選擇的 | 可選擇的 |
材料 |
客製規格 (almost every type of glass, silica, germanium, silicon, zerodur) |
S-LAH64 |
RoHS & REACH Conformity |
此產品已認證
RoHS & REACH 為歐盟許可進口的產品 |
一般情況:技術參數如有變更,恕不另行通知,可依要求提供客製化塗層 ,若您對選購鏡片有疑問,也歡迎您來電詢問喔。
