- Fused Silica 非球面鏡片
- Model:
- 品牌:Asphericon

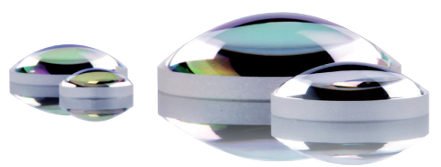

Fused silica lenses are available in three quality levels and optimized for multiple applications, as prototypes in test devices or as OEM-applications for beam-focusing or collimating.
A selection of diameters is also obtainable with high-precision mountings.
NEW: All FusedSilica Aspheres are also available with special V-coatings
|
Key Benefits: =Outstanding surface form deviation (quality levels: Precision, Ultra and BeamTuning) =Suitable for high-power laser applications =Laser induced damage threshold: 12 J/cm², 100 Hz, 6 ns, 532 nm =Off -the-shelf delivery =RoHS compliance Product
A: RMAX < 1.0%, RAVG ≤ 0.4%, 400-600 nm, AOI=0° B: RMAX < 1.0%, RAVG ≤ 0.4%, 600-1050 nm, AOI=0° C: RMAX < 1.0%, RAVG ≤ 0.4%, 1000-1600 nm, AOI=0° X: RMAX < 1.0%, RAVG ≤ 0.4%, 240-380 nm, AOI=0°
V-coatings: K :R < 0.25%, 355 nm, AOI=0° M:R < 0.25%, 1064 nm, AOI=0° |
|
|
|
