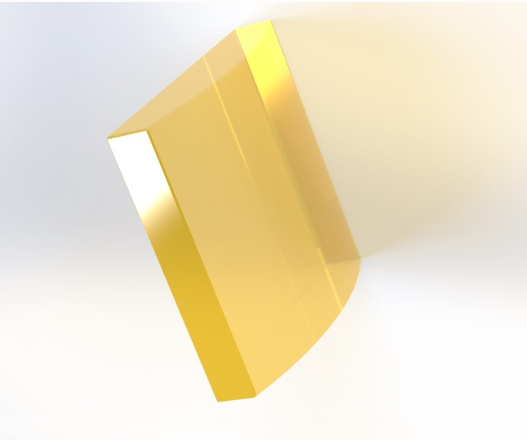

ZnSe lenses with one cylindrical surface may be made in either circular or rectangular shapes, both as plano-convex or plano-concave. ULO Optics offers a standard range of cylindrical-lenses per the specifications below. Custom optics can be made to order. Standard sizes include 25.0 mm, 25.4 mm, 28.0 mm and 38 mm diameters. Custom cylindrical optics can be made up to 100 mm in size.
● Standard or custom cylindrical lenses available
● Coated with AR/AR for 10.6 µm or per your specification
| Part Number | Diameter [mm] | EFL [mm] | CT [mm] | ET [mm] |
| 9.8ZCP50 | 25.0 | 49.9 | 4.12 | 3.0 |
| 10ZCP63 | 25.4 | 63.4 | 3.91 | 3.0 |
| 10ZCP254 | 25.4 | 253.8 | 3.23 | 3.0 |
| 11ZCP100 | 28.0 | 99.8 | 3.70 | 3.0 |
| 15ZCP127 | 38.05 | 126.9 | 4.02 | 3.0 |
| 9.8ZCN25 | 25.0 | -24.9 | 2.50 | 4.8 |
| 915ZCN38 | 38.05 | -38.1 | 3.00 | 6.5 |
| EFL = Effective Focal Length | CT = Center Thickness | ET = Edge Thickness |
