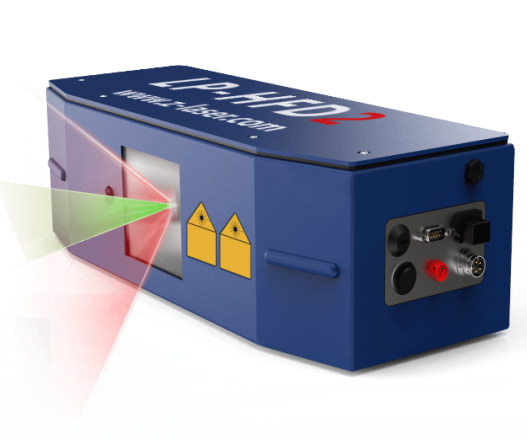

The LP-HFD2 is the successor of our proven LP-HFD laser projector. In addition to its new casing, and its IP65 protection class, special emphasis was placed on temperature stability during development. Fiber-coupled lasers with a red and/or green beam source,  and an output power of 7 mW are used. If required, stronger laser sources of up to 14 mW can be used. Standard focus optics can be achieved at a distance of 0.5 m to 7 m. With a tele-optic, distances up to 14 m are possible.

Cooling options such as air or water cooling are available for use at higher ambient temperatures. Ethernet is the typical data connection mode. In addition, communication via Profinet or a serial connection is possible.
