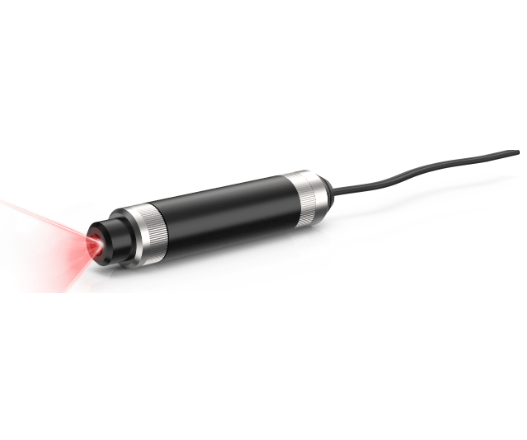

The laser modules of the ZT series have been developed especially for the textile industry but are often used for leather cutting or similar applications, too. The adjustable intensity means that the lasers can be matched to a wide range of fabric colors. This allows to achieve the best possible visibility while ensuring that the activity is easy on the eyes.
INFORMATION: (August 2021)
The front silver lock nut of the optical head will be fixed and glued. Therefore optics can´t be changed anymore
ZT特點
• Optical output power up to 5mW, red | • Dimensions: Ø 14 x 69mm |
• Dot, line, line-dot, small cross, large cross | |
• Adjustable brightness | • Laser with interchangeable optics |
Embroidery Applications |
High-Precision Positioning Tasks |
Sewing Machine |
ZT
Dimensions |
69 × 14 mm |
Wavelength |
635 nm |
Output power |
|
Fan Angle |
|
Projection |
Cross, dot, line |
Focus |
fixed focus |
Diameter |
14 mm |
Supply voltage |
3 VDC – 6 VDC |
IP protection class |
|
Application |
組裝 / 定位 |
