專業ZD - 520nm, 635nm, 650nm / 1 ~ 15mW廠商
- ZD - 520nm, 635nm, 650nm / 1 ~ 15mW
- Model: Laser modules
- 品牌:Z-Laser

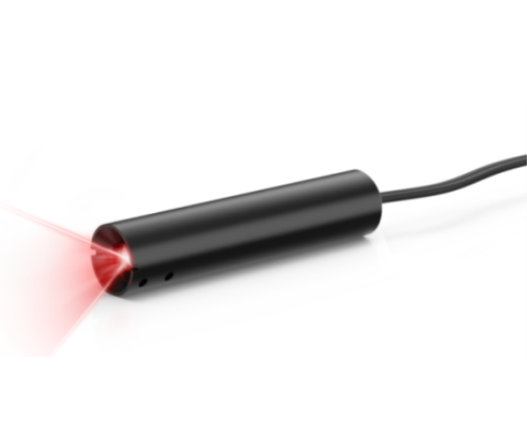

Universal mini laser module with excellent visibility HighlightsThe ZD laser module can optionally project a line, point, or cross projection. It is often used as a positioning laser in the wood, stone, textile, tire and metal industries. With a diameter of only Ø11 mm, it can be used universally.
The ZD stands out with its excellent visibility even at a low output power.In addition, a supply voltage of 5-24 VDC opens the door to various interesting applications. Output power up to 15 mW in combination with 635 nm red and up to 10 mW with 520 nm green laser diodes.
|
Embroidery applications |
High-Precision Positioning Tasks |
Applications |
ZD
|
Dimensions |
52 × 11 mm |
|
Wavelength |
520 nm, 635nm, 650 nm |
|
Output power |
1 mW, 3 mW, 5 mW, 7 mW, 10 mW,14 mW, 15 mW |
|
Fan Angle |
30 degrees, 60 degrees , 90 degrees |
|
Projection |
Cross, DOE, dot, line |
|
Focus |
fixed focus |
|
Diameter |
11 mm |
|
Supply voltage |
3 VDC – 6 VDC, 5 VDC - 30 VDC |
|
IP protection class |
|
|
Application |
定位 / OEM |
