Thanks to automated production processes in which all optical components are aligned with a 14-axis robot, the ZXS laser series sets new standards for illumination in machine vision applications.

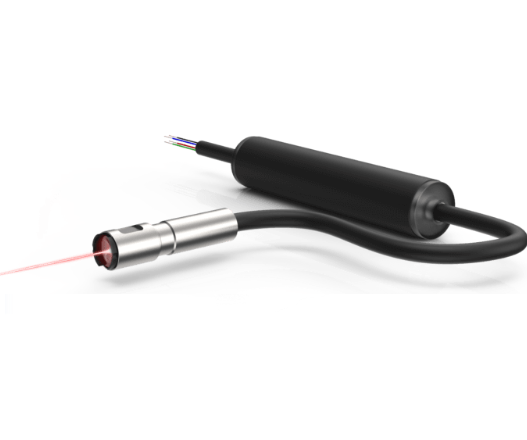

With its boresight error of less than 0.8 mrad, the ZXS laser is one of the most accurate lasers on the market. Its remote electronics make the laser module flexible for mounting. On request, an OEM variant can be offered in which, for example, the electronics can be completely integrated into your own board.
ZX10 - Highlights
•Repeatable product performance due to automated production processes |
•Optical output power up to 200 mW | •Industrial standard |
•TTL modulation up to 150 kHz | •Wavelengths from 405 - 830 nm |
•IP 67 (ZXS20) •IP 50 (ZXS10) |
•Highest reproducibility of beam quality | •Manually focusable (ZXS20) |
•Analog intensity control |
|
|||||||
|
|||||||
Wavelengths
|
ZXS10
Weight |
140 g |
Dimensions |
40 × 10 mm |
Wavelength |
405nm, 450nm, 520nm, 640nm, 660nm, 785nm, 830nm |
Output power |
|
Fan Angle |
10 degrees, 20 degrees, 30 degrees, 45 degrees, 60 degrees, 75 degrees, 90 degrees |
Projection |
Cross ,DOE ,dot ,line |
Focus |
fixed focus |
Modulation |
analog , digital |
Supply voltage |
5 VDC-30VDC |
IP protection class |
|
Application |
影像處理 / OEM |
