The ZX-laser series offers diverse, application specific customization possibilities. The user can choose from violett to infrared wavelengths depending on the application and material to be inspected. The focusing optics achieves a boresight of less than 0.8 mRad. The industrial-suited design along with stable performance works perfectly as an integrated module in machine vision applications, sensors or processing machines. The laser module contains no driver electronics (ZX10-ND) and is therefore ideally suited for OEM applications. Upon request, licensing and integration of the Z-LASER electronics can be provided (ZX10-LD).
ZX10 - Highlights
•Repeatable high product quality due
to automated production processes |
•Optical output power up to 40 mW | •Fixed focus |
•Wavelengths from 640 - 685 nm |
•IP 50 (optional IP 67) |
|
•Highest reproducibility of beam quality |
Machine Vision | Triangulation Sensors | Positioning Tasks | 3D-Measurement |

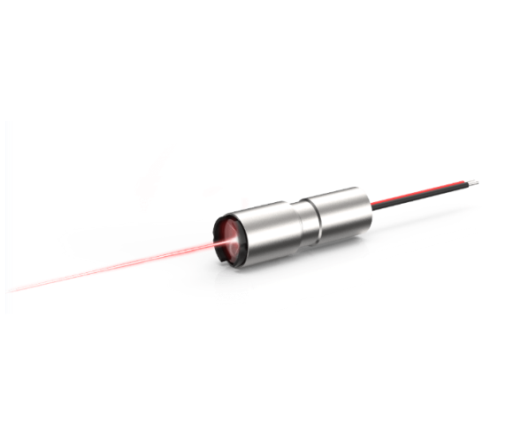

ZX10 series
Weight |
30 g |
Dimensions |
33 × 10 mm |
Wavelength |
635nm, 640nm, 660nm, 785nm, 830nm |
Output power |
1mW, 5mW, 10mW, 15mW, 25mW, 30mW, 40mW, 60mW, 80mW, 100mW |
Fan Angle |
10 degrees, 20 degrees, 30 degrees, 45 degrees, 60 degrees, 75 degrees, 90 degrees |
Projection |
Cross, DOE ,dot ,line |
Focus |
fixed focus |
Diameter |
10 mm |
Supply voltage |
|
IP protection class |
|
Application |
影像處理 / OEM |
