ZX20 series - 405~830nm
Model: ZM Laser Family
品牌:Z-Laser

產品特色Features

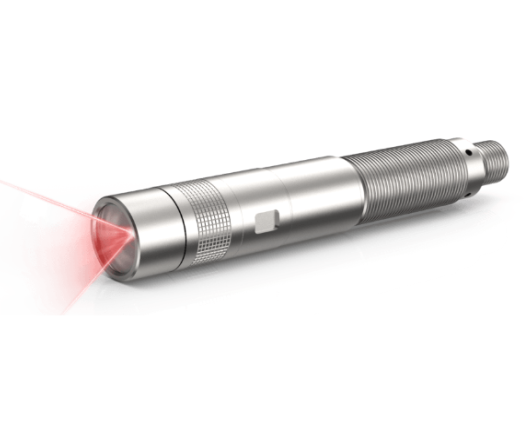

The laser module ZX20 sets new standards for machine vision illumination due to its automated production in which all optical components are aligned by a high-accurracy robot.
The ZX-laer impresses with precision. The Borsesight error is less than 0.8 mrad. The user can choose from IR, red, green, or blue wavelengths depending on the application and material to be inspected.
The right working distance can easily be adjusted with the tool-free manual focus option. The ZX20 with its industrial-suited design and stable performance works perfectly as an integrated module in machine vision aplications, sensors, or processing machines.

PDF檔案

ZX20 - Highlights

•Manual or fixed focus	•Optical output power up to 120 mW	•Industrial standard
•TTL modulation up to 500 kHz	•Wavelengths from 520 - 685 nm	• IP67
•1 pc. battery (AA)

Machine Vision

Triangulation Sensors

Positioning Tasks

3D-Measurement

Wavelength

產品規格Specifications

ZX20 series

Weight	125 g
Dimensions	116 × 20 mm
Wavelength	405nm, 450nm, 520nm, 635nm, 640nm, 660nm, 785nm, 830nm
Output power	5mW, 10mW, 15mW, 25mW, 30mW, 40mW, 60mW, 80mW, 120mW, 130mW, 200mW
Fan Angle	5 degrees, 10 degrees, 20 degrees, 30 degrees, 45 degrees, 60 degrees, 75 degrees, 90 degrees
Projection	Cross, DOE ,dot ,line
Focus	fixed focus, manual focus
Modulation	analog,digital
Supply voltage	5 VDC-30VDC
IP protection class
Application	影像處理 / OEM
