專業ZM18 series 廠商
- ZM18 series
- Model: Family ZM18
- 品牌:Z-Laser
.png)

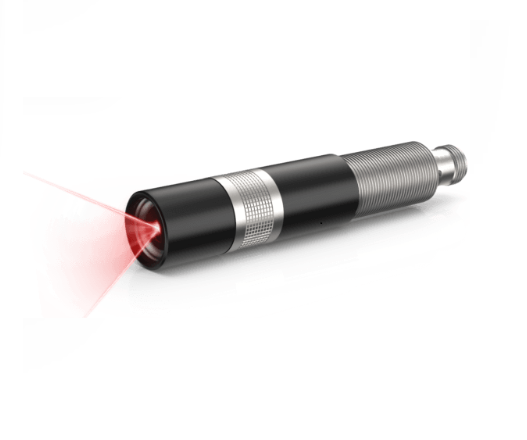

The products of the ZM18 series set the standard for modern laser modules for industrial use. You can select the right laser for your positioning application from more than 1,000 different variants.
The compact, sensor-like design enables easy integration into existing machines or systems. Easy-to-operate focussing optics complete the product. It’s the perfect allrounder!
  |
|||
| 機器視覺 | 三角測量感測器 | 高精度定位任務 | 3D測量 |
ZM18 series
|
Weight |
95 g |
|
Dimensions |
128 × 20 mm |
|
Wavelength |
520nm, 532nm, 635nm, 640nm, 660nm, 685nm |
|
Output power |
1mW, 5mW, 10mW, 15mW, 20mW, 30mW, 40mW, 60mW, 80mW, 120mW |
|
Fan Angle |
5 degrees, 10 degrees, 20 degrees, 30 degrees, 45 degrees, 60 degrees, 75 degrees, 90 degrees |
|
Projection |
Cross, DOE ,dot ,line |
|
Focus |
fixed focus, manual focus |
|
Diameter |
|
|
Supply voltage |
5 VDC-30VDC |
|
IP protection class |
|
|
Application |
定位 / 影像處理 / OEM |
