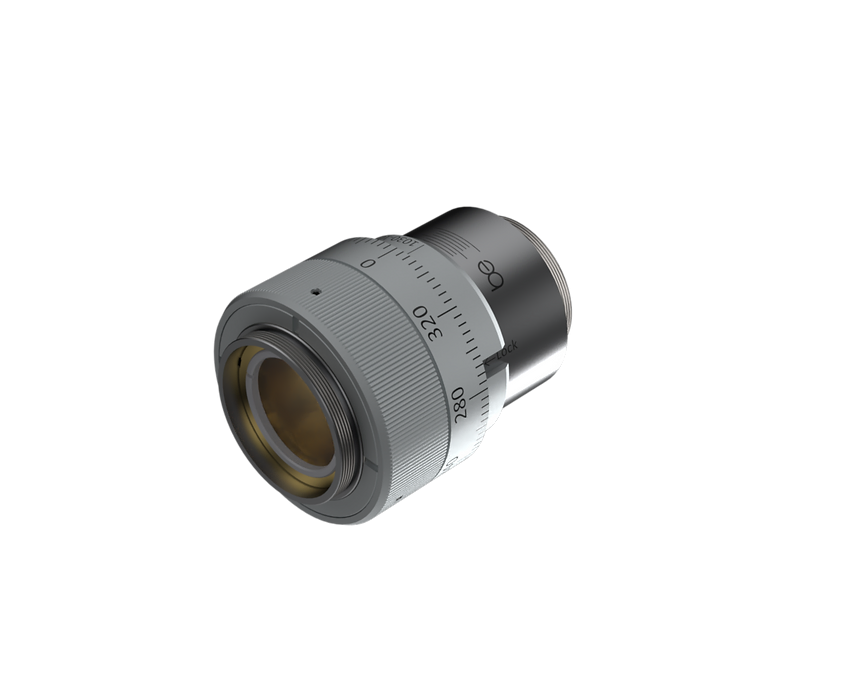

- High Power Fixed Beam Expanders
- Model:
- 品牌:Beamera
Features:
-
Diffraction limited performance
-
Fixed beam expansion products range from 0.8x to 2.4x
-
343, 355, 515, 532, 1030, 1064 nm
-
Divergence adjustment with sliding lens design
-
<100 µrad beam wander
-
No internal foci
LIDT:
-
>25 J/cm2 @ 1064 nm, 10 ns, 100 Hz
-
>5 J/cm2 @ 532 nm, 10 ns, 100 Hz
-
>2 J/cm2 @ 355 nm, 10 ns, 100 Hz
High Power Fixed Beam Expanders
| 標準品項 | PDF檔案 |
|||
| Expansion | 波長(nm) | 建議最大輸入光束(Ø mm) | 產品編號 | |
|
0.8x |
343-355 515-532 1030-1070 |
15.5 |
±2 mrad |
FX0.8-3H FX0.8-2H FX0.8-1H |
| 0.9x |
343-355 515-532 1030-1070 |
15.5 |
±2.5 mrad |
FX0.9-3H FX0.9-2H FX0.9-1H |
| 1.0x |
343-355 515-532 1030-1070 |
14 |
±3 mrad |
FX1.0-3H FX1.0-2H FX1.0-1H |
| 1.1x |
343-355 515-532 1030-1070 |
14 | ±8 mrad |
FX1.1-3H FX1.1-2H FX1.1-1H |
| 1.2x |
343-355 515-532 1030-1070 |
13 | ±1.5 mrad |
FX1.2-3H FX1.2-2H FX1.2-1H |
| 1.35x |
343-355 515-532 1030-1070 |
11.5 | ±3 mrad |
FX1.35-3H FX1.35-2H FX1.35-1H |
| 1.4x |
343-355 515-532 1030-1070 |
11 | ±1.5 mrad |
FX1.4-3H FX1.4-2H
FX1.4-1H |
| 1.5x |
343-355 515-532 1030-1070 |
10 | ±2 mrad |
FX1.5-3H FX1.5-2H
FX1.5-1H |
| 1.6x |
343-355 515-532 1030-1070 |
9.5 | ±2 mrad |
FX1.6-3H FX1.6-2H
FX1.6-1H |
| 1.7x |
343-355 515-532 1030-1070 |
9 | ±2 mrad |
FX1.7-3H FX1.7-2H
FX1.7-1H |
| 2.0x |
343-355 515-532 1030-1070 |
8 | ±2 mrad |
FX2.0-3H FX2.0-2H
FX2.0-1H |
| 2.4x |
343-355 515-532 1030-1070 |
6 | ±1.5 mrad |
FX2.4-3H FX2.4-2H FX2.4-1H |
