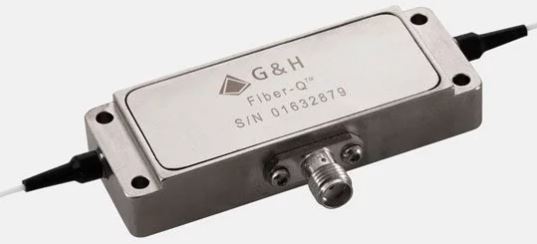

Fiber-Q® Fiber Coupled Modulators (FCAOM)
Model:
品牌: Gooch & Housego

產品特色Features

如果您對FCAOM的產品規格不熟悉，請您點擊以下連接填寫

FCAOM-Q&A表單，我們會盡快為您提供更多的相關資訊。

Fiber-coupled acousto-optic modulators offer an elegant and robust solution for amplitude modulation of fiber and fiber-coupled lasers, enabling direct control of the timing, intensity, and temporal shape of the laser output.

Our fiber-coupled acousto-optic modulators are all part of the Fiber-Q® series, offering a high extinction ratio, low insertion loss, and excellent stability in both polarization-maintaining (PM) and non-PM formats at modulation frequencies up to 80 MHz for visible and infrared wavelengths.

Ruggedized and reliable operation

Built for reliability, the Fiber-Q® series of products features a rugged hermetic design in a compact, low-profile package, ideal for ease of integration into all-fiber and OEM systems, including medical laser systems.

Controlling timing, intensity, and temporal shape

A fiber-coupled acousto-optic modulator (FCAOM) can directly control the temporal characteristics of the active output from a fiber laser, offering a wider variety of pulse shapes. As a byproduct of the acousto-optic effect, light passing through the 1st order diffraction mode of a fiber-coupled modulator also experiences a frequency shift and beam deflection. This allows our Fiber-Q® products to be used for more than just modulation, resulting in applications outside the laser such as optical heterodyne interferometry.

Our visible range of Fiber-Q® products also enables more compact all-fiber instrument designs in biomedical applications such as microscopy and flow cytometry.

產品規格Specifications

Product	Product Code	Wavelength	Pigtail Type	Rise / Fall Time	Operating Frequency
Fiber-Q 1060 nm 150 MHz Non-Hermetic Fiber-Coupled AOM PDF檔案 FiberQ1060nm 150MHz	S-M150-0.4C2G-3-F2S	1060 nm	SM	30ns	150 MHz
Fiber-Q 1060 nm 200 MHz Non-Hermetic Fiber-Coupled AOM PDF檔案 FiberQ1060nm 200MHz	S-M200-0.1C2G-3-F2P	1060 nm	SM	10ns	200 MHz
Fiber-Q, 450 nm 200 MHz PDF檔案 FiberQ 450nm200MHz	S-M200-0.4C2A-3-F2P S-M200-0.4C2A-3-F2S	450 nm	PM SM	25ns	200 MHz
Fiber-Q, 532 nm 200 MHz PDF檔案 FiberQ 532nm200MHz	S-M200-0.4C2C-3-F2P S-M200-0.4C2C-3-F2S	532 nm	PM SM	25ns	200 MHz
Fiber-Q, 633 nm 200 MHz Fiber Coupled AOM PDF檔案 FiberQ 633nm200MHz	S-M200-0.4C2E-3-F2P S-M200-0.4C2E-3-F2S	633 nm	PM SM	25ns	200 MHz
Fiber-Q, PM 1550 nm, 40 MHz (AMTIR) PDF檔案 FiberQ1550nm 40MHz	T-M040-0.5C8J-3-F2S	1550 nm	SM	70ns	40 MHz
Fiber-Q 1550 nm 40 MHz (AMTIR) PDF檔案 FiberQ1550nm 40MHz	T-M040-0.5C8J-3-F2P	1550 nm	PM	70ns	40 MHz
Fiber-Q PM 2000 nm 80 MHz Hermetic Fiber Coupled AOM PDF檔案 FiberQ 2000nm80MHz	T-M080-0.3C2Z-3-F2P	2000 nm	PM	70ns	80 MHz
Fiber-Q 2000 nm 80 MHz Hermetic Fiber Coupled AOM PDF檔案 FiberQ 2000nm80MHz	T-M080-0.3C2Z-3-F2S	2000 nm	SM	70ns	80 MHz
Fiber-Q PM 1550nm 80MHz Hermetic Fiber-Coupled AOM PDF檔案 FiberQ 1550nm80MHz	T-M080-0.4C2J-3-F2P	1550 nm	PM	35ns	80 MHz
Fiber-Q 1550 nm 80 MHz Hermetic Fiber Coupled AOM PDF檔案 FiberQ1550nm 80MHz	T-M080-0.4C2J-3-F2S	Max: 1530 nm Min: 1565 nm Typical: 1550nm	SM	35ns	80 MHz
PM Fiber-Q Polarization Maintaining 1550 nm Hermetic Fiber Coupled Acousto-Optic Modulator, 80 MHz (Low Power Consumption) PDF檔案 FiberQ1550nm 80MHz	T-M080-0.5C8J-3-F2P	1550 nm	PM	70ns	80 MHz
Fiber-Q 1550 nm Hermetic Fiber Coupled Acousto-Optic Modulator, 80 MHz (Low Power Consumption) PDF檔案 FiberQ1550nm 80MHz	T-M080-0.5C8J-3-F2S	1550 nm	SM	70ns	80 MHz
Fiber-Q PM 1550 nm 110 MHz Hermetic Fiber Coupled AOM PDF檔案 FiberQ1550nm 110MHz	T-M110-0.2C2J-3-F2P	Min: 1530 nm Max: 1565 nm Typical: 1550nm	PM	25ns	110 MHz
Fiber-Q 1550 nm 110 MHz Hermetic Fiber Coupled AOM PDF檔案 FiberQ1550nm 110MHz	T-M110-0.2C2J-3-F2S	1550 nm	SM	25ns	110 MHz
Fiber-Q PM 1060 nm 150 MHz Hermetic Fiber Coupled AOM PDF檔案 FiberQ1060nm 150MHz	T-M150-0.4C2G-3-F2P	1060 nm	PM	30ns	150 MHz
Fiber-Q 1060 nm 150 MHz Hermetic Fiber-Coupled AOM PDF檔案 FiberQ1060nm 150MHz	T-M150-0.4C2G-3-F2S	1060 nm	SM	30ns	150 MHz
Fiber-Q, 780 nm, 150 MHz Fiber Coupled AOM PDF檔案 FiberQ780nm 150MHz	T-M150-0.5C2W-3-F2P T-M150-0.5C2W-3-F2S	780 nm	PM SM	50ns	150 MHz
Fiber-Q PM 1060 nm 200 MHz Hermetic Fiber Coupled AOM PDF檔案 FiberQ1060nm 200MHz	T-M200-0.1C2G-3-F2P	1060 nm	PM	10 ns	200 MHz
Fiber-Q 1060 nm 200 MHz Fiber Coupled AOM PDF檔案 FiberQ1060nm 200MHz	T-M200-0.1C2G-3-F2S	Min: 1030nm Max:1090 nm Typical:1060 nm	PM	10 ns	200 MHz
Fiber-Q PM 1550 nm 200 MHz Hermetic Fiber-Coupled AOM PDF檔案 FiberQ1550nm 200MHz	T-M200-0.1C2J-3-F2P	1550 nm	PM	10 ns	200 MHz
Fiber-Q 1550 nm 200 MHz Hermetic Fiber-Coupled AOM PDF檔案 FiberQ1550nm 200MHz	T-M200-0.1C2J-3-F2S	1550 nm	SM	10 ns	200 MHz
Fiber-Q 2000 nm (2µm) 250 MHz Fiber Coupled AOM PDF檔案 FiberQ 2000nm250MHz	T-M250-0.3C16Z-3-F2P	2000 nm	PM	20ns	250 MHz
Fiber-Q 1060 nm 300 MHz Hermetic Fiber Coupled AOM PDF檔案 FiberQ1060nm300MHz	T-M300-0.1C2G-3-F2P T-M300-0.1C2G-3-F2S	1060 nm	PM	6 ns	300 MHz
Fiber-Q® 1550 nm Fiber Coupled Acousto-Optic Modulator PDF檔案FiberQ 1550nm	T-M300-0.1C16J-3-F2P	1550 nm	SM	6 ns	300 MHz

如果您對FCAOM的產品規格不熟悉，請您點擊以下連接填寫

FCAOM-Q&A表單，我們會盡快為您提供更多的相關資訊。
