BBO crystal transparency ranges from 188 nm to 5,2 µm, which includes reasonable transparency from 3-5,2 µm for few tens µm thick crystals, while their phase-matchable range spans almost over the entire transparency range. Combined with other magnificent properties of BBO, it is favorable for numerous nonlinear parametric applications, e.g. harmonic generation of pulsed Yb-doped crystal-based lasers and frequency doubling, a tripling of Ti:Sapphire lasers, widely tunable type I and II OPO. It is worth to mention that BBO crystals have the highest nonlinearity in the UV range out of all common nonlinear crystals.

Main features

• Broad transparency ranges from 188 nm to 5,2 µm (reasonable transparency @3 µm - 5,2 µm for few tens µm thick crystals)
• The broad phase-matchable range for various second-order nonlinear interactions over almost the entire transparency range
• Wide thermal acceptance bandwidth
• Highest nonlinearity of all UV nonlinear crystals
• The high laser-induced damage threshold
• Ultrathin crystals available for few optical cycle laser pulses
• Custom size, orientation, and coatings are available upon request

Application examples

• Harmonic generation (up to fifth) of pulsed Nd-doped crystal-based lasers
• Frequency doubling, a tripling of pulsed Ti:Sapphire, Yb-doped, dye lasers
• Widely tunable type I and II OPO
• Characterization of ultrashort laser pulses by FROG, XFROG, SPIDER, dispersion scan, chirp scan methods

Physical and optical properties

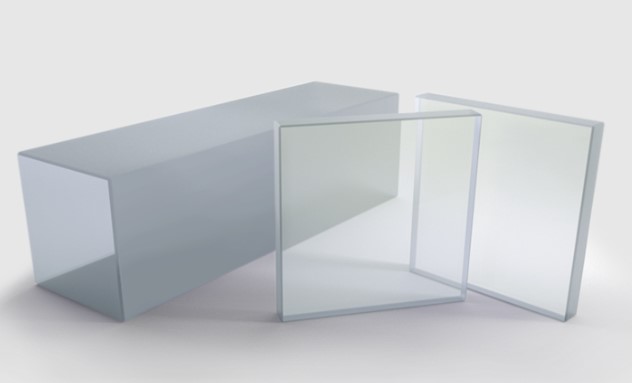

BBO crystals
