Optogama Variable reflectivity mirrors代理 、Standa Variable reflectivity mirrors代理

Optogama

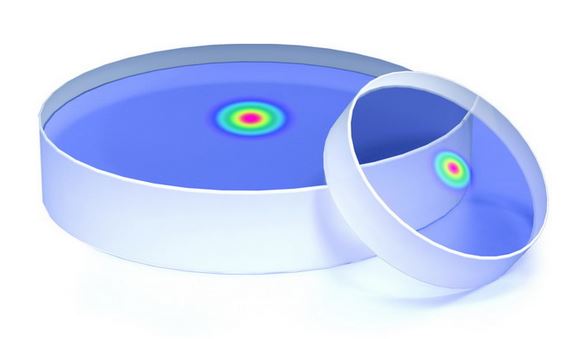

4Lasers variable reflectivity mirrors provide a circularly symmetric reflectance profile according to the super-Gaussian function with an order of 2. These mirrors are favorable in high-power unstable laser resonators for their wide filling of the active medium and weak diffraction on the hard-edge aperture. Therefore, super-Gaussian variable reflectivity mirrors contribute to better near- and far-field beam quality. It is worth mentioning that variable reflectivity mirrors can be designed to have various reflectance profiles, such as linear, parabolic, Gaussian.

Main features

• Mirror substrates fabricated from high-quality UV grade fused silica
• Standard substrate dimensions are ø25,4 x 5 mm
• Central reflectance from 15% to 35% at 1064 nm wavelength
• Custom reflectance profiles, substrates material, and dimensions are available upon request

Application examples

• Laser cavity output coupler for unstable laser resonator

Standa

Improves beam shape and quality

Variable/locall

Highest available central reflection value Rr (max) - 50%y defined reflection

Custom design (substrate shape, wedge, AR coating) available

In order to have better beam quality, i.e. in non-stable resonators, variable reflection mirrors - variable reflectivity mirrors can be used. High intensity of the laser beam requires use of components with a high damage threshold. Dielectric coatings are best suited to meet these requirements. Standa offers variable reflectivity mirrors with dielectric coating, designed at wavelengths in a range from 266 to 2500 nm.

Standard Specifications

Variable reflectivity mirrors-Optogama

Variable Reflectivity Mirrors-Standa

*Custom wavelengths available.
