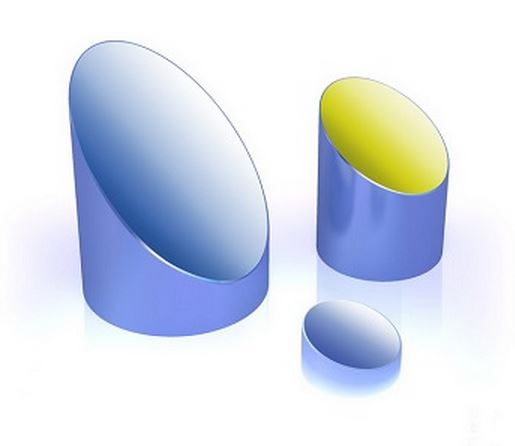

Off-axis Parabolic Metal Mirrors
Model:
品牌:Standa

產品特色Features

Aluminum Substrate Mirrors

Available in 30°, 60°, or 90° Off-Axis

Mounting Plates Also Available

Standa provides standard and special metal mirrors with parabolic surface contours for off-axis beam focusing performance. These mirrors are machined from solid bar stock to minimize surface figure deformation which is inherent to the thin walled replicated type. The metal mirrors are produced with advanced Diamond turning equipment.

Standard Specifications

Material	Aluminium
Diameter Tolerance	+0.0, +0.4 mm
Focal Length Tolerance	±1%
Surface Figure	1/4λ - 1λ RMS (depends on size)
Surface Roughness	< 100-175 Å RMS
Coating	Protected Aluminum or Protected Gold

產品規格Specifications

Metal Mirrors

Diameter	Parent Focal Length (mm)	Effective Focal Length (mm)	Y Offset (mm)	Angle α, (deg)	Protected Aluminum	Protected Gold
25.4	381	387.6	100.33	15	14OAP-1-381-15-AL	14OAP-1-381-15-GM
25.4	635	654.99	167.2	15	14OAP-1-635-15-AL	14OAP-1-635-15-GM
50.8	304.8	310.08	80.26	15	14OAP-2-304.8-15-AL	14OAP-2-304.8-15-GM
50.8	508	516.81	133.75	15	14OAP-2-508-15-AL	14OAP-2-508-15-GM
76.2	635	646	167.2	15	14OAP-3-635-15-AL	14OAP-3-635-15-GM
101.6	381	387.6	100.33	15	14OAP-4-381-15-AL	14OAP-4-381-15-GM
101.6	508	516.81	133.75	15	14OAP-4-508-15-AL	14OAP-4-508-15-GM
25.4	25.4	27.22	13.61	30	14OAP-1-25.4-30-AL	14OAP-1-25.4-30-GM
25.4	50.8	54.45	27.22	30	14OAP-1-50.8-30-AL	14OAP-1-50.8-30-GM
50.8	50.8	54.45	27.22	30	14OAP-2-50.8-30-AL	14OAP-2-50.8-30-GM
50.8	101.6	108.89	54.45	30	14OAP-2-101.6-30-AL	14OAP-2-101.6-30-GM
50.8	127	136.12	68.06	30	14OAP-2-127-30-AL	14OAP-2-127-30-GM
50.8	254	272.24	136.12	30	14OAP-2-254-30-AL	14OAP-2-254-30-GM
76.2	76.2	81.67	40.84	30	14OAP-3-76.2-30-AL	14OAP-3-76.2-30-GM
76.2	254	272.23	136.11	30	14OAP-3-254-30-AL	14OAP-3-254-30-GM
101.6	304.8	326.69	163.34	30	14OAP-4-304.8-30-AL	14OAP-4-304.8-30-GM
25.4	101.6	119.02	84.17	45	14OAP-1-101.6-45-AL	14OAP-1-101.6-45-GM
25.4	127	148.79	105.2	45	14OAP-1-127-45-AL	14OAP-1-127-45-GM
50.8	50.8	59.51	42.08	45	14OAP-2-50.8-45-AL	14OAP-2-50.8-45-GM
50.8	101.6	119.03	84.17	45	14OAP-2-101.6-45-AL	14OAP-2-101.6-45-GM
76.2	76.2	89.28	63.11	45	14OAP-3-76.2-45-AL	14OAP-3-76.2-45-GM
76.2	127	148.79	105.21	45	14OAP-3-127-45-AL	14OAP-3-127-45-GM
76.2	152.4	178.53	126.26	45	14OAP-3-152.4-45-AL	14OAP-3-152.4-45-GM
101.6	101.6	119.03	84.17	45	14OAP-4-101.6-45-AL	14OAP-4-101.6-45-GM
101.6	152.4	178.55	126.25	45	14OAP-4-152.4-45-AL	14OAP-4-152.4-45-GM
25.4	25.4	33.85	29.33	60	14OAP-1-25.4-60-AL	14OAP-1-25.4-60-GM
25.4	38.1	50.8	43.99	60	14OAP-1-38.1-60-AL	14OAP-1-38.1-60-GM
25.4	50.8	67.74	58.64	60	14OAP-1-50.8-60-AL	14OAP-1-50.8-60-GM
50.8	76.2	101.6	87.98	60	14OAP-2-76.2-60-AL	14OAP-2-76.2-60-GM
76.2	76.2	101.6	87.99	60	14OAP-3-76.2-60-AL	14OAP-3-76.2-60-GM
76.2	114.3	152.4	131.98	60	14OAP-3-114.3-60-AL	14OAP-3-114.3-60-GM
25.4	12.7	25.4	25.4	90	14OAP-1-12.7-90-AL	14OAP-1-12.7-90-GM
25.4	25.4	50.8	50.8	90	14OAP-1-25.4-90-AL	14OAP-1-25.4-90-GM
25.4	50.8	101.6	101.6	90	14OAP-1-50.8-90-AL	14OAP-1-50.8-90-GM
25.4	76.2	152.4	152.4	90	14OAP-1-76.2-90-AL	14OAP-1-76.2-90-GM
25.4	101.6	203.2	203.2	90	14OAP-1-101.6-90-AL	14OAP-1-101.6-90-GM
50.8	25.4	50.8	50.8	90	14OAP-2-25.4-90-AL	14OAP-2-25.4-90-GM
50.8	50.8	101.6	101.6	90	14OAP-2-50.8-90-AL	14OAP-2-50.8-90-GM
50.8	76.2	152.4	152.4	90	14OAP-2-76.2-90-AL	14OAP-2-76.2-90-GM
50.8	95.3	190.5	190.5	90	14OAP-2-95.3-90-AL	14OAP-2-95.3-90-GM
76.2	25.4	50.8	50.8	90	14OAP-3-25.4-90-AL	14OAP-3-25.4-90-GM
76.2	50.8	101.6	101.6	90	14OAP-3-50.8-90-AL	14OAP-3-50.8-90-GM
76.2	76.2	152.4	152.4	90	14OAP-3-76.2-90-AL	14OAP-3-76.2-90-GM
76.2	88.9	177.8	177.8	90	14OAP-3-88.9-90-AL	14OAP-3-88.9-90-GM
101.6	50.8	101.6	101.6	90	14OAP-4-50.8-90-AL	14OAP-4-50.8-90-GM
101.6	76.2	152.4	152.4	90	14OAP-4-76.2-90-AL	14OAP-4-76.2-90-GM
