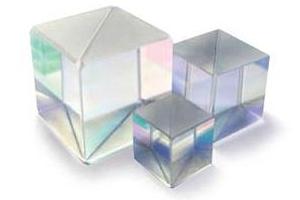

Non polarizing beamsplitter cubes
Model:
品牌:Standa

產品特色Features

All faces are AntiReflection coated

Low polarization dependence

50/50 split ratio non-polarizing beamsplitter cubes are available in Standa! Cubes are constructed by cementing two precision right angle prisms together with metallic-dielectric coating on the hypotenuse surface. Absorption loss due to coating is around 10%, moreover these cubes do not affect polarization of the incident beam!

Standard Specifications

Material	S-BSL7
Dimension Tolerance	+/-0.1mm
Flatness	λ/4- λ/10 depends on size
Surface Quality	40/20 S/D
Angle Tolerance	+/-1 arcmin
Beamsplitting Ratio	1:1
Clear Aperture	90%
Bevel	0.2-0.5 mm
Coating Type	AR coating of all four work sides
Transmittance	45%
Absorption	5-10%

產品規格Specifications

Non Polarizing Beamsplitter Cubes

Dimensions, mm	Wavelength range, nm	Ordering code
5x5x5	400-700	14NBC-5-50/50-400-700
	700-950	14NBC-5-50/50-700-950
	950-1150	14NBC-5-50/50-950-1150
	1040-1560	14NBC-5-50/50-1040-1560
10x10x10	400-700	14NBC-10-50/50-400-700
	700-950	14NBC-10-50/50-700-950
	950-1150	14NBC-10-50/50-950-1150
	1040-1560	14NBC-10-50/50-1040-1560
12.7x12.7x12.7	400-700	14NBC-12.7-50/50-400-700
	700-950	14NBC-12.7-50/50-700-950
	950-1150	14NBC-12.7-50/50-950-1150
	1040-1560	14NBC-12.7-50/50-1040-1560
20x20x20	400-700	14NBC-20-50/50-400-700
	700-950	14NBC-20-50/50-700-950
	950-1150	14NBC-20-50/50-950-1150
	1040-1560	14NBC-20-50/50-1040-1560
25.4x25.4x25.4	400-700	14NBC-25.4-50/50-400-700
	700-950	14NBC-25.4-50/50-700-950
	950-1150	14NBC-25.4-50/50-950-1150
	1000-1300	14NBC-25.4-50/50-1000-1300
	1040-1560	14NBC-25.4-50/50-1040-1560
