Plano-Concave Lenses
Model:
品牌:Standa

產品特色Features

Diverges incident light

Other dimensions are available in small and mass production quantities

Various AR coatings are available for all these lenses. Please refer to the Coatings Section

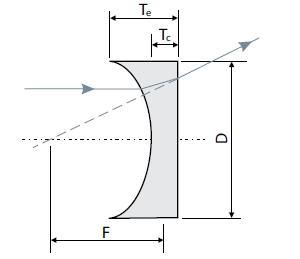

These negative focus length lenses have flat surface on one side and spherical surface on the other. They are used to expand beams or to increase focal lengths in optical systems or other similar applications. PCV lens up to 500 mm diameter are available. Under customers request lens are anti-reflection coated (please refer to the Coatings section).

Standard Specifications

Material	BK7, UVFS, CaF₂
Diameter Tolerance	+0.0, -0.12 mm
Thickness Tolerance	±0.5 mm
Centration
Clear Aperture	>90%
Surface Irregularity	λ/8 @ 633 nm
Surface Irregularity for CaF₂	λ/4 @ 546 nm
Surface Quality	40-20 scratch & dig
Paraxial focal length	±2% @ 546 nm for BK7 ±2% @ 355 nm for UVFS ±2% @ 2940 nm for CaF2
AR Coatings	None. Please refer to the Coatings Section

產品規格Specifications

BK7 Plano-Concave Lenses

Diameter	Focal Length	Centre thickness CT	Edge thickness ET	Ordering code
12,7 mm	25 mm	1,9 mm	3,5 mm	14PCV25-05-1
12,7 mm	50mm	2,7 mm	3,5 mm	14PCV50-05-1
12,7 mm	60 mm	2,4 mm	2,4 mm	14PCV60-05-1
12,7 mm	75 mm	2,9 mm	3,5 mm	14PCV75-05-1
12,7 mm	100 mm	3 mm	3,5 mm	14PCV100-05-1
12,7 mm	125 mm	3,1 mm	3,5 mm	14PCV125-05-1
12,7 mm	150 mm	3,2 mm	3,5 mm	14PCV150-05-1
12,7 mm	200mm	3,3 mm	3,5 mm	14PCV200-05-1
12,7 mm	250 mm	3,3 mm	3,5 mm	14PCV250-05-1
12,7 mm	300 mm	2,9 mm	3 mm	14PCV300-05-1
25,4 mm	30 mm	1,4 mm	8 mm	14PCV30-1-1
25,4 mm	40 mm	1,7 mm	6 mm	14PCV40-1-1
25,4 mm	50 mm	2,8 mm	6 mm	14PCV50-1-1
25,4 mm	75 mm	2,9 mm	5 mm	14PCV75-1-1
25,4 mm	100 mm	3,1 mm	4,5 mm	14PCV100-1-1
25,4 mm	125 mm	3,0 mm	4,0 mm	14PCV125-1-1
25,4 mm	150 mm	2,7 mm	3,7 mm	14PCV150-1-1
25,4 mm	200 mm	3 mm	3,7 mm	14PCV200-1-1
25,4 mm	250 mm	3,1 mm	3,7 mm	14PCV250-1-1
25,4 mm	300 mm	3,1 mm	3,7 mm	14PCV300-1-1
25,4 mm	400 mm	3,6 mm	4 mm	14PCV400-1-1
25,4 mm	450 mm	3,6 mm	4 mm	14PCV450-1-1
25,4 mm	500 mm	3,7 mm	4 mm	14PCV500-1-1
25,4 mm	650 mm	3,7 mm	4 mm	14PCV650-1-1
25,4 mm	750 mm	3,8 mm	4 mm	14PCV750-1-1
25,4 mm	1000 mm	3,8 mm	4 mm	14PCV1000-1-1
25,4 mm	1500 mm	3,9 mm	4 mm	14PCV1500-1-1
25,4 mm	2000 mm	3,9 mm	4 mm	14PCV2000-1-1
25,4 mm	3000 mm	3,9 mm	4 mm	14PCV3000-1-1
25,4 mm	5000 mm	3,8 mm	4 mm	14PCV5000-1-1
38,1 mm	100 mm	2 mm	7 mm	14PCV100-1.5-1
38,1 mm	150 mm	3,3 mm	6 mm	14PCV150-1.5-1
38,1 mm	200 mm	4,1 mm	6 mm	14PCV200-1.5-1
38,1 mm	300 mm	4,7 mm	6 mm	14PCV300-1.5-1

UVFS Plano-Concave Lenses

Diameter	Focal Length	Centre thickness CT	Edge thickness ET	Ordering code
12,7 mm	25 mm	1,3 mm	3,2 mm	14PCV25-05-2
12,7 mm	50 mm	2,1 mm	3 mm	14PCV50-05-2
12,7 mm	60 mm	2,3 mm	3 mm	14PCV60-05-2
12,7 mm	75 mm	2,4 mm	3 mm	14PCV75-05-2
12,7 mm	80 mm	2,5 mm	3 mm	14PCV80-05-2
12,7 mm	90 mm	2,6 mm	3 mm	14PCV90-05-2
12,7 mm	100 mm	2,6 mm	3 mm	14PCV100-05-2
12,7 mm	125 mm	2,7 mm	3 mm	14PCV125-05-2
12,7 mm	150 mm	2,7 mm	3 mm	14PCV150-05-2
12,7 mm	175 mm	2,8 mm	3 mm	14PCV175-05-2
12,7 mm	200mm	2,8 mm	3 mm	14PCV200-05-2
12,7 mm	250mm	2,8 mm	3 mm	14PCV250-05-2
25,4 mm	50 mm	1,9 mm	5,6 mm	14PCV50-1-2
25,4 mm	75 mm	3,1 mm	5,5 mm	14PCV75-1-2
25,4 mm	100 mm	3 mm	4,7 mm	14PCV100-1-2
25,4 mm	125 mm	3,0 mm	4 mm	14PCV125-1-2
25,4 mm	150 mm	3,1 mm	4,2 mm	14PCV150-1-2
25,4 mm	200 mm	3,1 mm	4 mm	14PCV200-1-2
25,4 mm	250 mm	3,3 mm	4 mm	14PCV250-1-2
25,4 mm	300 mm	3,4 mm	4 mm	14PCV300-1-2
25,4 mm	400 mm	3,6 mm	4 mm	14PCV400-1-2
25,4 mm	500 mm	3,7 mm	4 mm	14PCV500-1-2
25,4 mm	750 mm	3,8 mm	4 mm	14PCV750-1-2
25,4 mm	1000 mm	3,8 mm	4 mm	14PCV1000-1-2
25,4 mm	5000 mm	2 mm	2 mm	14PCV5000-1-2
38,1 mm	100 mm	2,4 mm	7 mm	14PCV100-1.5-2
38,1 mm	150 mm	3 mm	6 mm	14PCV150-1.5-2
38,1 mm	200 mm	3 mm	5,2 mm	14PCV200-1.5-2
38,1 mm	300 mm	4,3 mm	5,7 mm	14PCV300-1.5-2
50,8 mm	100 mm	5 mm	11,5 mm	14PCV100-2-2
50,8 mm	250 mm	3 mm	5,7 mm	14PCV250-2-2
50,8 mm	500 mm	4,6 mm	6 mm	14PCV500-2-2

CaF₂ Plano-Concave Lenses

Diameter	Focal Length	Centre thickness CT	Edge thickness ET	Ordering code
12,7 mm	25 mm	1,9 mm	4 mm	14PCV25-05-3
12,7 mm	50 mm	2 mm	3 mm	14PCV50-05-3
12,7 mm	75 mm	2,4 mm	3 mm	14PCV75-05-3
12,7 mm	100 mm	2,5 mm	3 mm	14PCV100-05-3
12,7 mm	150 mm	2,7 mm	3 mm	14PCV150-05-3
12,7 mm	200 mm	1,8 mm	2 mm	14PCV200-05-3
12,7 mm	250 mm	1,8 mm	2 mm	14PCV250-05-3
12,7 mm	500 mm	1,9 mm	2 mm	14PCV500-05-3
25,4 mm	40 mm	2,5 mm	7 mm	14PCV40-1-3
25,4 mm	50 mm	2,7 mm	7 mm	14PCV50-1-3
25,4 mm	75 mm	2,8 mm	5,5 mm	14PCV75-1-3
25,4 mm	100 mm	3 mm	5 mm	14PCV100-1-3
25,4 mm	150 mm	2,7 mm	4 mm	14PCV150-1-3
25,4 mm	200 mm	3 mm	4 mm	14PCV200-1-3
25,4 mm	250 mm	3,2 mm	4 mm	14PCV250-1-3
25,4 mm	500 mm	2,6 mm	3 mm	14PCV500-1-3
25,4 mm	1000 mm	2,8 mm	3 mm	14PCV1000-1-3
