14DM-DAR - Dual AR coated windows
Model: DAR
品牌:Standa

產品特色Features

These coatings are designed to increase the transmission over a broad spectrum

Coatings are provided by Ion Beam Sputtering (IBS) or Electron beam evaporation with/without Ion assistance coating techniques

Dual Anti-Reflection Coatings in the range 0.19-10.6 µm are available

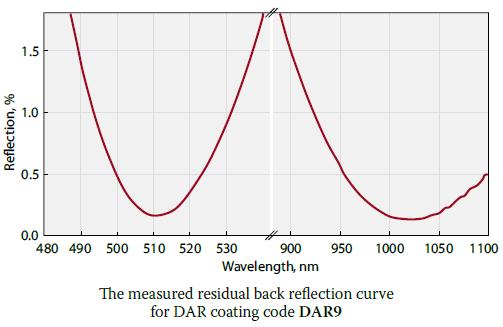

Dual AR coated windows designed to reduce the reflectivity of a component to near-zero for two certain wavelengths. Usually these windows are used in multi-frequency laser output systems (e.g. frequency doubling). This type of coating provides very high transmission at two different wavelength. Typical wavelengths and reflection curves of an AR coating suitable for the standard laser system output at 1064 nm and 532 nm are shown below.

Standard Specifications

Substrate Dimension Tolerance	+0.0, -0.1 mm
Substrate Wavefront Distortion	<λ/8
Substrate Surface Quality	20-10 S-D (40-20 S-D for curved surfaces)
Coating Adhesion and Durability	Per MIL-C-675A
Residual Reflectivity	<0.5%
Clear Aperture	>90% of diameter
Laser Damage Threshold	>4-5 J/cm² for 10 ns pulses @ 1064 nm

產品規格Specifications

Dual AR Coated Windows

Wavelength, nm	Substrate material	Ordering Code for AOI = 0°	Ordering Code for AOI = 45°	Ordering Code for AOI = 0°	Ordering Code for AOI = 45°
Wavelength, nm	Substrate material	Ø12.7x5 mm		Ø25.4x5 mm
266+532	UVFS	14DM-05-DAR1-0-2	14DM-05-DAR1-45-2	14DM-1-DAR1-0-2	14DM-1-DAR1-45-2
343+1030	UVFS	14DM-05-DAR2-0-2	14DM-05-DAR2-45-2	14DM-1-DAR2-0-2	14DM-1-DAR2-45-2
355+532	UVFS	14DM-05-DAR3-0-2	14DM-05-DAR3-45-2	14DM-1-DAR3-0-2	14DM-1-DAR3-45-2
355+1064	UVFS	14DM-05-DAR4-0-2	14DM-05-DAR4-45-2	14DM-1-DAR4-0-2	14DM-1-DAR4-45-2
400+800	UVFS	14DM-05-DAR6-0-1	14DM-05-DAR6-45-1	14DM-1-DAR6-0-1	14DM-1-DAR6-45-1
515+1030	UVFS	14DM-05-DAR8-0-1	14DM-05-DAR8-45-1	14DM-1-DAR8-0-1	14DM-1-DAR8-45-1
532+1064	UVFS	14DM-05-DAR9-0-1	14DM-05-DAR9-45-1	14DM-1-DAR9-0-1	14DM-1-DAR9-45-1
510-532 + 1020-1070	UVFS	N/A	14DM-05-DAR11-45-2	N/A	14DM-1-DAR11-45-2
