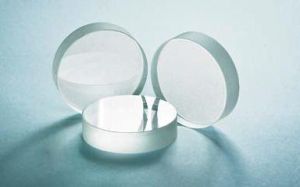

Standa 14DM-AR - AR coated windows代理,Standa廠商,AR coated windows公司

產品特色Features

Designed to reduce reflectivity of a optical component to near-zero for specific wavelength

Laser Line Anti-Reflection Coatings in range 0.19 µm - 10.6 µm are available

Coatings are provided by Ion Beam Sputtering (IBS) or Electron beam evaporation with/without Ion assistance coating techniques

Anti-reflecting coatings (AR) are desgned to reduce reflectivity of a component to near-zero for specific wavelength.

Standard Specifications

Substrate Dimension Tolerance	+0.0, -0.1 mm
Substrate Wavefront Distortion	<λ/8
Substrate Surface Quality	20-10 S-D (40-20 S-D for curved surfaces)
Coating Adhesion and Durability	Per MIL-C-675A
Clear Aperture	>90% of diameter
Measured Residual Reflectivity	R<0.25% @ 0° AOI, R<0.35% @ 45° AOI
Laser Damage Threshold	>8 J/cm² for 10 ns pulses @ 1064 nm

產品規格Specifications

BK7 AR coated windows

Wavelength, nm	Ordering Code for AOI = 0° (residual reflectivity <0.25%)	Ordering Code for AOI = 45° (residual reflectivity <0.35%)	Ordering Code for AOI = 0° (residual reflectivity <0.25%)	Ordering Code for AOI = 45° (residual reflectivity <0.35%)
Wavelength, nm	Ø12.7x3 mm		Ø25.4x6 mm
515	14DM-05-AR5-0-1	14DM-05-AR5-45-1	14DM-1-AR5-0-1	14DM-1-AR5-45-1
527-532	14DM-05-AR6-0-1	14DM-05-AR6-45-1	14DM-2-AR6-0-1	14DM-1-AR6-45-1
633	14DM-05-AR8-0-1	14DM-05-AR8-45-1	14DM-1-AR8-0-1	14DM-1-AR8-45-1
780	14DM-05-AR9-0-1	14DM-05-AR9-45-1	14DM-1-AR9-0-1	14DM-1-AR9-45-1
800	14DM-05-AR10-0-1	14DM-05-AR10-45-1	14DM-1-AR10-0-1	14DM-1-AR10-45-1
980	14DM-05-AR13-0-1	14DM-05-AR13-45-1	14DM-1-AR13-0-1	14DM-1-AR13-45-1
1030	14DM-05-AR14-0-1	14DM-05-AR14-45-1	14DM-1-AR14-0-1	14DM-1-AR14-45-1
1047-1064	14DM-05-AR15-0-1	14DM-05-AR15-45-1	14DM-1-AR15-0-1	14DM-1-AR15-45-1
1550	14DM-05-AR18-0-1	14DM-05-AR18-45-1	14DM-1-AR18-0-1	14DM-1-AR18-45-1

UVFS AR coated windows

Wavelength, nm	Ordering Code for AOI = 0° (residual reflectivity <0.25%)	Ordering Codefor AOI = 45° (residual reflectivity <0.35%)	Ordering Code for AOI = 0° (residual reflectivity <0.25%)	Ordering Code for AOI = 45° (residual reflectivity <0.35%)
Wavelength, nm	Ø12.7x2 mm		Ø25.4x5 mm
266	14DM-05-AR1-0-2	14DM-05-AR1-45-2	14DM-1-AR1-0-2	14DM-1-AR1-45-2
343-355	14DM-05-AR2-0-2	14DM-05-AR2-45-2	14DM-1-AR2-0-2	14DM-1-AR2-45-2
400	14DM-05-AR3-0-2	14DM-05-AR3-45-2	14DM-1-AR3-0-2	14DM-1-AR3-45-2
515	14DM-05-AR5-0-2	14DM-05-AR5-45-2	14DM-1-AR5-0-2	14DM-1-AR5-45-2
527-532	14DM-05-AR6-0-2	14DM-05-AR6-45-2	14DM-1-AR6-0-2	14DM-1-AR6-45-2
589	14DM-05-AR7-0-2	14DM-05-AR7-45-2	14DM-1-AR7-0-2	14DM-1-AR7-45-2
633	14DM-05-AR8-0-2	14DM-05-AR8-45-2	14DM-1-AR8-0-2	14DM-1-AR8-45-2
780	14DM-05-AR9-0-2	14DM-05-AR9-45-2	14DM-1-AR9-0-2	14DM-1-AR9-45-2
800	14DM-05-AR10-0-2	14DM-05-AR10-45-2	14DM-1-AR10-0-2	14DM-1-AR10-45-2
980	14DM-05-AR13-0-2	14DM-05-AR13-45-2	14DM-1-AR13-0-2	14DM-1-AR13-45-2
1030	14DM-05-AR14-0-2	14DM-05-AR14-45-2	14DM-1-AR14-0-2	14DM-1-AR14-45-2
1047-1064	14DM-05-AR15-0-2	14DM-05-AR15-45-2	14DM-1-AR15-0-2	14DM-1-AR15-45-2
1550	14DM-05-AR18-0-2	14DM-05-AR18-45-2	14DM-1-AR18-0-2	14DM-1-AR18-45-2
