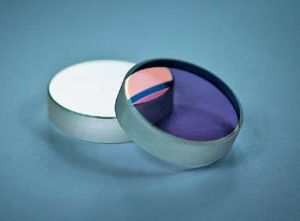

14DM-DHR - Dual Laser Line Reflecting Mirrors
Model: DHR
品牌:Standa

產品特色Features

The coatings are designed to achieve the highest possible reflectivity at two specific laser line wavelengths at normal or 45 degrees incidence

Coatings are provided by Ion Beam Sputtering (IBS) or Electron beam evaporation with/without Ion assistance coating techniques

Any other standard substrate can be coated with this type of coatings!

Dual Laser Line reflecting mirrors (DHR) provide an optimized performance at two certain wavelengths and certain angle of incidence (AOI). These multilayer coating stacks helps to achieve the highest possible reflectivity at two specific laser line wavelengths at normal or 45 degrees incidence. Laser line high reflectivity coatings are intended for external beam manipulation applications where even slight losses may be intolerable.

tandard Specifications

Substrate Dimension Tolerance	+0.0, -0.1 mm
Substrate Wavefront Distortion	<λ/8 (<λ/4 for curved surfaces)
Substrate Surface Quality	20-10 S-D (40-20 S-D for curved surfaces)
Coating Adhesion and Durability	Per MIL-C-675A
Clear Aperture	>90% of diameter
Measured Reflectivity	R>99.5% @ 0°, R_s>99.3% and R_p>98.5% @ 45°
Laser Damage Threshold	>3-5 J/cm² for 10 ns pulses @ 1064 nm

產品規格Specifications

Dual Laser Line reflecting mirrors

Wavelength, nm	Substrate material	Ordering Code for AOI = 0°	Ordering Code for AOI = 45°	Ordering Code for AOI = 0°	Ordering Code for AOI = 45°
Wavelength, nm	Substrate material	Ø12.7 mm		Ø25.4 mm
266+532	UVFS	14DM-05-DHR1-0-2	14DM-05-DHR1-45-2	14DM-1-DHR1-0-2	14DM-1-DHR1-45-2
343+1030	UVFS	14DM-05-DHR2-0-2	14DM-05-DHR2-45-2	14DM-1-DHR2-0-2	14DM-1-DHR2-45-2
355+532	UVFS	14DM-05-DHR3-0-2	14DM-05-DHR3-45-2	14DM-1-DHR3-0-2	14DM-1-DHR3-45-2
355+1064	UVFS	14DM-05-DHR4-0-2	14DM-05-DHR4-45-2	14DM-1-DHR4-0-2	14DM-1-DHR4-45-2
400+800	UVFS	14DM-05-DHR6-0-2	14DM-05-DHR6-45-2	14DM-1-DHR6-0-2	14DM-1-DHR6-45-2
515+1030	UVFS	14DM-05-DHR8-0-2	14DM-05-DHR8-45-2	14DM-1-DHR8-0-2	14DM-1-DHR8-45-2
532+1064	UVFS	14DM-05-DHR9-0-2	14DM-05-DHR9-45-2	14DM-1-DHR9-0-2	14DM-1-DHR9-45-2

PLEASE NOTE:
thickness of UVFS Ø12.7 mm and Ø25.4 mm DHR mirrors is 5 mm;
