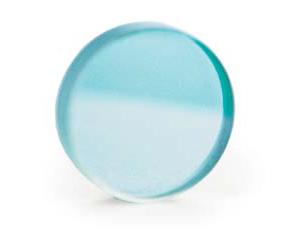

14DM-GTI - Gires-Tournois Interferometer Mirrors
Model: GTI
品牌:Standa

產品特色Features

Reflectivity up to 99.9%

Central wavelength tolerance up to 1%

GDD values ranges from 100 fs² to 1500 fs² for Yb:KGW, Yb:YAG laser type coatings

GDD - Group Delay Dispersion

Gires-Tournois interferometer (GTI) is an optical standingwave resonator designed for generating chromatic dispersion. GTI mirrors are used mainly for pulse compression in Yb:YAG, Yb:KGW femtosecond lasers, but can be optimized for other wavelengths, for example Ti:Sapphire laser system. Compared to prism or grating pulse compression systems GTI thin film mirrors exhibits lower losses and sensitivity to mechanical misalignment errors, thus enabling higher output power and stability of laser system.

Standard Specifications

Material	UVFS
Substrate Dimension Tolerance	+0.0, -0.1 mm
Substrate Wavefront Distortion	<λ/[email protected] nm
Surface Quality	20-10 S-D (10-5 S-D on request)
Clear Aperture	>90%
Measured Reflectivity	R_sp>99.8% @ 1010 nm - 1080 nm, AOI=0°-10° R_sp>99.8% @ 700 nm - 900 nm, AOI=0°-10°
Laser Damage Threshold	>1 J/cm² for 500 fs pulses @ 1030 nm
Coating Adhesion and Durability	Per MIL-C-675A

產品規格Specifications

Gires-Tournois Interferometer Mirrors

Wavelength, nm	Average GDD, fs²	AOI	Ordering Code
Wavelength, nm	Average GDD, fs²	AOI	Ø12.7x5 mm	Ø25.4x5 mm
780 - 820	-150	0° - 10°	14DM-05-GTI1-5-150	14DM-1-GTI1-5-150
785 - 815	-250	0° - 10°	14DM-05-GTI1-5-250	14DM-1-GTI1-5-250
790 - 810	-400	0° - 10°	14DM-05-GTI1-5-400	14DM-1-GTI1-5-400
1010 - 1050	-200	0° - 10°	14DM-05-GTI2-5-200	14DM-1-GTI2-5-200
1015 - 1045	-400	0° - 10°	14DM-05-GTI2-5-400	14DM-1-GTI2-5-400
1015 - 1045	-600	0° - 10°	14DM-05-GTI2-5-600	14DM-1-GTI2-5-600
