專業Colored Glass Filter 廠商
- Colored Glass Filter
- Model:
- 品牌:Standa
產品特色Features
Standa provides color glasss filrers for laser pulse attenuation, filtering, etc.
Due to its selective absorption in visible wavelength range, color glass filter will exhibit various color depending the glass type. Color glass filter provides an economical filter for various applications. Optical glass filters are widely used in safety glasses, industrial measurement, environment protection and many others.
|
Universal Filter Set 14UFS-1-S45 |
Color Glass Filter Set 14CGF PDF檔案 |
Standard Specifications
| Material | Schott glass or equivalent |
| Diameter Tolerance | +0.0, -0.2 mm |
| Clear Aperture | 90% |
| Surface Quality | 60-40 scratch & dig |
| Surface Flatness | λ @ 632.8 nm |
| Parallelism | |
| Uncoated, Unmounted | |
產品規格Specifications
Color Glass Filters
| Material | Ordering Code | ||||
| Ø12.7x3 mm | Ø25.4x3 mm | 50.8x50.8x3 mm | |||
| GG Series: Yellow glass | |||||
| GG10 | 14CGF-GG10-1 | 14CGF-GG10-2 | 14CGF-GG10-3 | ||
| GG375 | 14CGF-GG375-1 | 14CGF-GG375-2 | 14CGF-GG375-3 | ||
| GG400 | 14CGF-GG400-1 | 14CGF-GG400-2 | 14CGF-GG400-3 | ||
| GG420 | 14CGF-GG420-1 | 14CGF-GG420-2 | 14CGF-GG420-3 | ||
| GG455 | 14CGF-GG455-1 | 14CGF-GG455-2 | 14CGF-GG455-3 | ||
| GG475 | 14CGF-GG475-1 | 14CGF-GG475-2 | 14CGF-GG475-3 | ||
| GG495 | 14CGF-GG495-1 | 14CGF-GG495-2 | 14CGF-GG495-3 | ||
| OG Series: Orange glass | |||||
| OG515 | 14CGF-OG515-1 | 14CGF-OG515-2 | 14CGF-OG515-3 | ||
| OG530 | 14CGF-OG530-1 | 14CGF-OG530-2 | 14CGF-OG530-3 | ||
| OG550 | 14CGF-OG550-1 | 14CGF-OG550-2 | 14CGF-OG550-3 | ||
| OG570 | 14CGF-OG570-1 | 14CGF-OG570-2 | 14CGF-OG570-3 | ||
| OG590 | 14CGF-OG590-1 | 14CGF-OG590-2 | 14CGF-OG590-3 | ||
| RG Series: Red and black glass, IR transmitting | |||||
| RG6 | 14CGF-RG6-1 | 14CGF-RG6-2 | 14CGF-RG6-3 | ||
| RG7 | 14CGF-RG7-1 | 14CGF-RG7-2 | 14CGF-RG7-3 | ||
| RG610 | 14CGF-RG610-1 | 14CGF-RG610-2 | 14CGF-RG610-3 | ||
| RG630 | 14CGF-RG630-1 | 14CGF-RG630-2 | 14CGF-RG630-3 | ||
| RG645 | 14CGF-RG645-1 | 14CGF-RG645-2 | 14CGF-RG645-3 | ||
| RG665 | 14CGF-RG665-1 | 14CGF-RG665-2 | 14CGF-RG665-3 | ||
| RG695 | 14CGF-RG695-1 | 14CGF-RG695-2 | 14CGF-RG695-3 | ||
| RG715 | 14CGF-RG715-1 | 14CGF-RG715-2 | 14CGF-RG715-3 | ||
| RG780 | 14CGF-RG780-1 | 14CGF-RG780-2 | 14CGF-RG780-3 | ||
| RG830 | 14CGF-RG830-1 | 14CGF-RG830-2 | 14CGF-RG830-3 | ||
| RG850 | 14CGF-RG850-1 | 14CGF-RG850-2 | 14CGF-RG850-3 | ||
| UG Series: Black blue glasses, ultraviolet transmitting | |||||
| UG1 | 14CGF-UG1-1 | 14CGF-UG1-2 | 14CGF-UG1-3 | ||
| UG5 | 14CGF-UG5-1 | 14CGF-UG5-2 | 14CGF-UG5-3 | ||
| UG11 | 14CGF-UG11-1 | 14CGF-UG11-2 | 14CGF-UG11-3 | ||
| KG Series: Colorless glass with high transmission in the visible and absorption in the IR range | |||||
| KG1 | 14CGF-KG1-1 | 14CGF-KG1-2 | 14CGF-KG1-3 | ||
| KG2 | 14CGF-KG2-1 | 14CGF-KG2-2 | 14CGF-KG2-3 | ||
| KG3 | 14CGF-KG3-1 | 14CGF-KG3-2 | 14CGF-KG3-3 | ||
| VG Series: Green glass | |||||
| VG5 | 14CGF-VG5-1 | 14CGF-VG5-2 | 14CGF-VG5-3 | ||
| VG8 | 14CGF-VG8-1 | 14CGF-VG8-2 | 14CGF-VG8-3 | ||
| VG10 | 14CGF-VG10-1 | 14CGF-VG10-2 | 14CGF-VG10-3 | ||
| BG Series: Blue, blue-green and multi-band glass | |||||
| BG3 | 14CGF-BG3-1 | 14CGF-BG3-2 | 14CGF-BG3-3 | ||
| BG7 | 14CGF-BG7-1 | 14CGF-BG7-2 | 14CGF-BG7-3 | ||
| BG12 | 14CGF-BG12-1 | 14CGF-BG12-2 | 14CGF-BG12-3 | ||
| BG20 | 14CGF-BG20-1 | 14CGF-BG20-2 | 14CGF-BG20-3 | ||
| BG25 | 14CGF-BG25-1 | 14CGF-BG25-2 | 14CGF-BG25-3 | ||
| BG38 | 14CGF-BG38-1 | 14CGF-BG38-2 | 14CGF-BG38-3 | ||
| Color and neutral filter set consisting of 45 mounted filters (Ø25.4 mm, CA18 mm) | |||||
| Universal Filter Set (45 pcs) | 14UFS-1-S45 | ||||

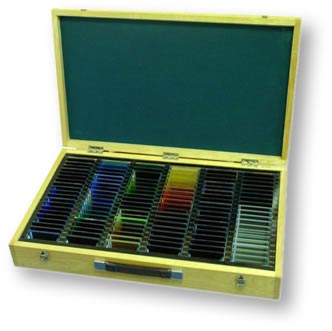

| Color Glass Filter Set consisting of 95 unmounted filters (40x40 mm) | |||||
| Color Glass Filter Set (95 pcs) | 14CG | ||||
