專業ZRG-F - green廠商
- ZRG-F - green
- Model: Positioning laser
- 品牌:Z-Laser
.png)
產品特色Features

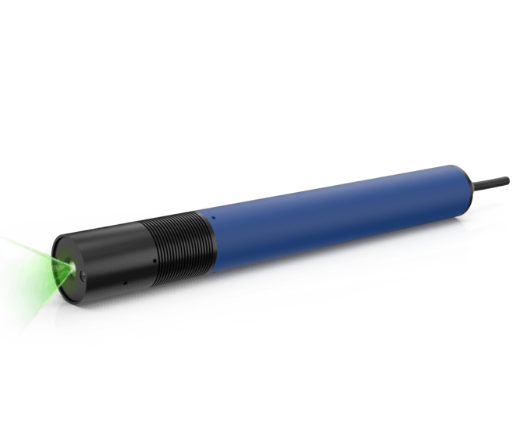

The ZRG-F positioning laser is the only laser in a Ø40 mm casing that offers a green dot and line projection. The beam focusing option ensures top visibility.
The large cooling surface contributes to optimal heat dissipation. The integrated power supply and rugged casing make this positioning aid particularly suitable for use in harsh environments.
The laser measures an optical output power up to 40 mW/532 nm.
ZRG-F特點
| • Green laser for extra long lines and best visibility | • Adjustable focus |
| • Optical output power up to 40mW/532nm | • Dimensions: Ø 40mm x 329mm |
| • Large cooling surface for optimal heat dissipation | |
| • Integrated power supply with high immunity to interference | |
|
Textile positioning table |
Long homogenous projection |
circular saw |
產品規格Specifications
ZRG-F
|
Weight |
4000 g |
|
Dimensions |
124 × 20 mm |
|
Wavelength |
532 nm |
|
Output power |
5 mW, 10 mW, 15 mW, 40mW |
|
Projection |
dot, line |
|
Focus |
manual focus |
|
Diameter |
40 mm |
|
Supply voltage |
|
|
IP protection class |
|
|
Application |
Assembling, Mounting / set-up , Positioning |
