The ZPT-F with it’s integrated heavy duty power supply is one of our long time and well known laser series. It is the only laser of its kind with a temperature-stabilized laser source. Due to the integrated focusing option the line projection can be adjusted at site for minimum line width and therefore also for best visibility.
With its design, it is a high-quality and service-friendly precision device.
ZPT-F特點
•Red laser for long lines and best visibility | •Optical output power up to 60 mW |
• Adjustable focus | • Dimensions: Ø 40mmx280mm |
• Integrated power supply with high immunity to interference | |
• Temperature-stabilized laser source (Peltier cooling) | |
• Large cooling surface for optimal heat dissipation |
Textile table |
Long homogenous projection |
Circular Saw |

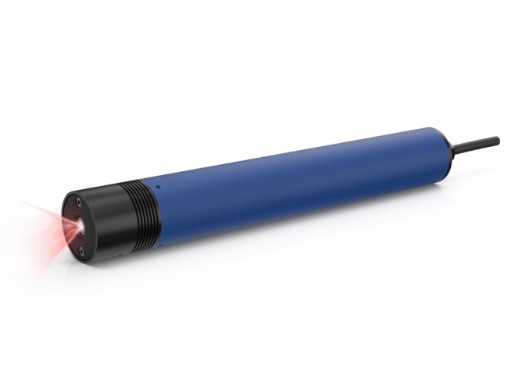

ZPT-F
Diameter |
40 mm |
Output power |
60 mW |
Wavelength |
635 nm |
Projection |
line |
Focus |
manual focus |
Application |
Assembling,Mounting/set-up,positioning |
Technology |
|
Supply voltage |
90 bis 265 VAC |
Laser class |
1M ,2M |
IP protection class |
lP65 |
