- Modular Barriers
- Modular Barriers
- Model:
- 品牌:Laservision
產品特色Features
• Customized to fit your laser environment
• Complete wall module system with frame
• Certified laser barrier materials for multiple power densities
• Can incorporate laser safety windows and doors
• Quick and easy set-up

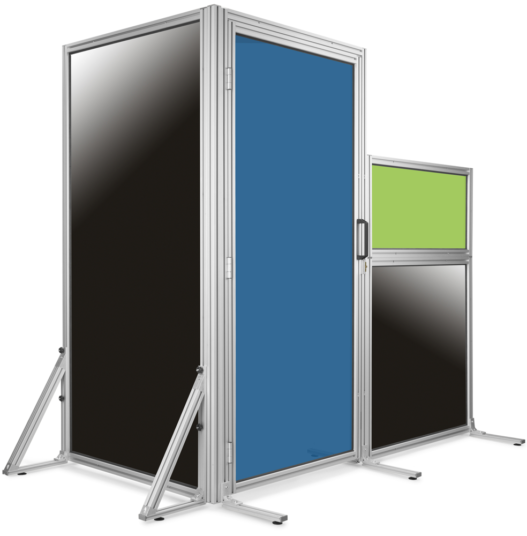

New modular design allows for fast and easy construction of protective barriers and enclosures. We design each unit with laser-rated panels and safe viewing windows, according to your requirements. Each segment can be equipped with wheels for a more portable solution.
產品規格Specifications
| Wall Segments | |
 |
• Standard width 39” • Three height options: 19.5”, 39” and 78” • Panel and window options available |
| M5P06 Panel | |
 |
• Lightweight protective paneling • Long-lasting and maintenance free • Laser safety rating: 1,000 W/cm2 315 – 1050 nm 2,500 W/cm2 >1050 – 1400 nm 10,000 W/cm2 10600 nm Tested for 100 seconds at 1 mm beam diameter |
| Door Module | |
 |
• Standard dimensions 78” x 39” • Right or left hinged • Covered gaps • Panel and window options available |
 |
|
