產品特色Features

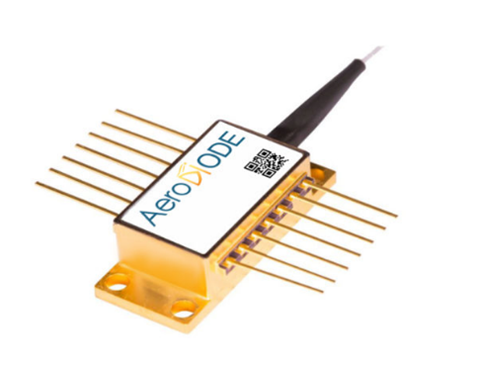

Aerodiode的光纖耦合1310 nm雷射二極體通常應用於CW或脈衝雷射二極體驅動，4個單頻版本（DFB雷射二極體）功率高達180 mW。1310 nm雷射二極體可與高速納秒脈衝驅動兼容，解決方案適用於無線電訊號或3D傳感應研究開發領域。

單模版本的1310 nm雷射二極體在納秒脈衝模式下功率高達300 mW。大多數雷射二極體+驅動的解決方案被用來優化單發至CW脈衝性能，脈衝寬度低至1納秒。1310 nm雷射二極體由內部的電路板脈衝發生器或外部TTL訊號提供精確脈衝，產生複雜的突發形狀變得容易。

Aerodiode單頻1310 nm雷射二極體的產品特點：

了解更多產品詳情，點擊即可參閱：1310 nm雷射二極體

產品規格Specifications

1310 nm Laser diode + driver solutions :
	1310 nm Laser Diode version :	Laser Driver version :
	1310 nm Laser Diode version :	CW Driver (for singlemode diodes : CCS-CW is the open driver and CCSI-CW is the integrated version)	Pulse & CW Driver (from 1 ns to CW : CCS is the open driver and CCSI is the integrated version)	User design pulse shape Driver (SHAPER open driver from 0.5 ns to 8 µs)
Output Power (CW regime (typ)	1- Singlemode 10 mW	10 mW		No
	2- Singlemode 40 mW	40 mW		No
	3 - singlemode 100 mW	100 mW		No
	4- singlemode 180 mW	180 mW		No
Output power - Pulse regime (typ)	1 - Singlemode 10 mW	No	15 mW
	2- Singlemode 40 mW	No	60 mW
	3 - singlemode 100 mW	No	150 mW
	4- singlemode 180 mW	No	200 mW / 250 mW (special HP driver version)	200 mW
User design nanosecond pulse shape (integrated AWG)		No (CW driver)	No (On-Off driver)	Yes
Laser diode T° range		15 - 50 °C
Pulse duration (Ext pulse trigger)			0.5 ns - CW	0.5 ns - 8 µs
Pulse duration (Internal pulse generator)			0.5 ns - 500 ns	0.5 ns - 8 µs
Typ rise/fall time ; Min pulse duration			3 (ns/A) ; 1.5 ns	< 1 (ns/A) ; 1 ns
Internal rep rate adjustment			1 Hz - 4 MHz (250 MHz option)	1 Hz - 20 MHz
Temporal jitter			< 20 ps	< 2 ns
Adjustable CW current offset in pulse regime			(Optional)	No
Interface/GUI/libraries		USB - Windows 7/10 - DLLs - Hexa/Linux - Labview - Python
