專業SOA脈衝驅動器廠商

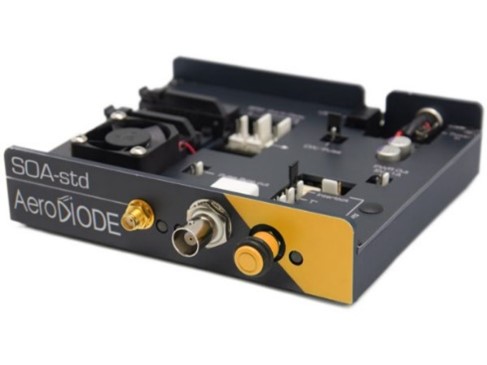

- SOA脈衝驅動器
- Model: SOA pulsed driver with nanosecond
- 品牌:AeroDIODE
產品特色Features
AeroDIODE的SOA脈衝驅動器(半導體光放大器)是一種無損耗，高動態，高消光比，高偏振解決方案，適用波長範圍為750 nm至1700 nm。該SOA脈衝驅動器由內部的電路板脈衝發生器或外部TTL訊號提供精確脈衝。SOA脈衝驅動器（半導體光放大器）可以與AOM, EOM或直接雷射二極管調製器比較（詳情請參閱比較表和有關光調製器的教程）。它是實現可靠、穩定、高效的光纖調製的解決方案。
AeroDIODE SOA脈衝驅動器的產品特點：
- 使用者可自定1ns至CW的脈寬（SOA-shape高達 8微妙）
- 高動態範圍：＞48 dB；高消光比：＞50 dB
- 無損耗設備
- 8ps低時序抖動
- 重覆頻率高達250 MHz
- 使用者自定義脈衝形狀（僅限SOA-shape版本）
- TEC溫度控制
- 波長不隨脈衝持續時間變化
- 安全限制，電流水平（平均/峰值），SOA溫度均可調
- USB和模擬控制
了解更多產品詳情，點擊即可參閱:SOA脈衝驅動器
產品規格Specifications
| SOA-std | SOA-HPP (High Pulse Performance) | SOA-Shape (User design nanosecond pulse shape) | |
|---|---|---|---|
| Wavelength | Any wavelength to be selected between 700 nm and 1700 nm (see wavelength table on datasheet (last page) | ||
| Optical bandwidth (nm) | From 20 nm to 110 nm to be selected (see wavelength table on datasheet) | ||
| Extinction ration (dB, typ) | 50 dB | 40 dB | |
| Max input power | See wavelength table on datasheet (last page) | ||
| Switching speed (typ) | 1 ns | 2 ns | |
| Dynamic range (up to) | 60 dB | 48 dB | |
| Small signal gain | From 22 to 40 dB (see wavelength table next page) | ||
| Trigger-to-pulse Jitter / internal trigger Jitter | |||
| Pulse shaping | On-Off only | Yes (500 ps resolution) | |
| CW offset (in pulse mode) | no | yes | no |
| Max pulse duration | Internal pulse generator : 500 ns / External pulse generator : | 8 µsec | |
| Max repetition rate | 10 MHz | 250 MHz | 20 MHz |
| Compatibilities & Libraries | USB - Windows 7/10 ; DLLs - Hexa - Labview - Python | ||
| Dimensions (mm) | 190*150*45 | 208*100*37 | |
| Power supply | 12 V (110 - 220 V adaptator included) | 24 V (110-220 V adaptator included | |
