Windows with a slight wedge are common to use for prevention of harmful laser cavity feedback and beam interference effects. Standard 4Lasers uncoated flat-wedge windows are fabricated from BK7 and UV grade fused silica optical glass. UV grade fused silica glass flat-wedge windows is a good option for UV, ultrashort pulse and high-power laser applications by reason of low sensitivity to temperature variations, relatively high damage threshold and UV transmission down to 185 nm. BK7 glass windows is a cost-effective choice for visible and nearinfrared range, low/mid-power laser and non-laser applications.

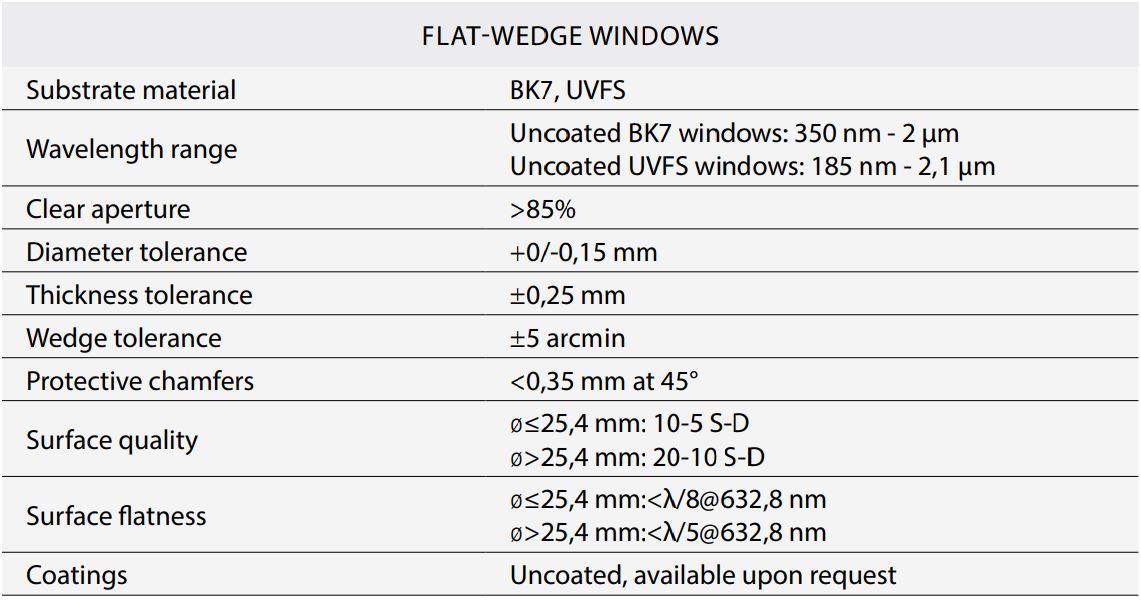

Main features

• Fabricated from high-quality, laser grade polished UV grade fused silica, BK7 glasses
• Standard diameters are ⌀12,7 mm, ⌀25,4 and ⌀50,8 mm
• Wedge angle selection from 0,5° to 3°
• Coatings, custom substrate material, dimensions are available upon request

Application examples

• Protection from undesirable laser cavity feedback
• Elimination of fringe pattern due to back reflections
• Variable beam steering
• Beam sampling
