- Focal-PiShaper 12_CO2
- Model: Focal-PiShaper 12_CO2
- 品牌: Adloptica
產品特色Features
Focal-πShaper 12_CO2
Series of high efficient Beam Shapers to manipulate the intensity profile of focused TEM00 beams CO2 Lasers
With these unique tools the long-standing wish to manipulate the shape of focused beams becomes a reality. With nearly 100% efficiency the Focal-πShaper produces various profiles:
- "Flattop"
- "Reverse Gauss"
- "Donut"
- "Trident", etc.
An appropriate optical design provides simple adjustment procedure and lets it easy to integrate the Focal-πShaper in your applications:
- Marking and Engraving
- Drilling

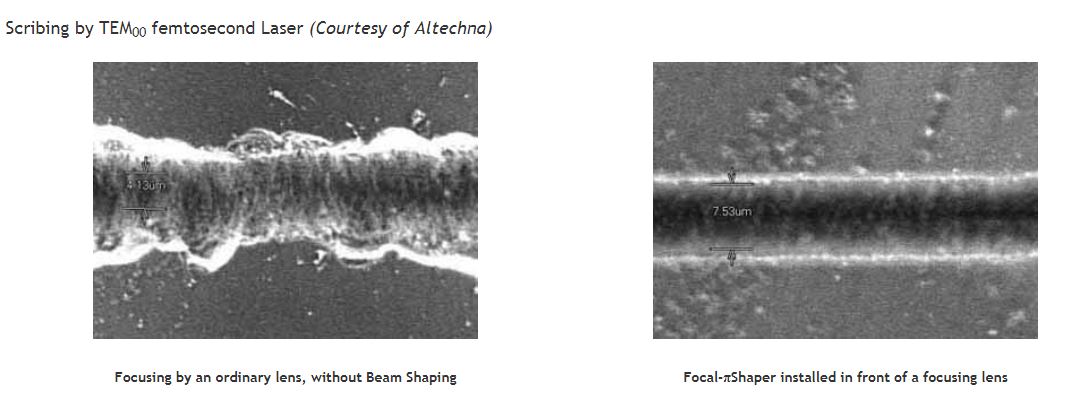

- Scribing
- Dicing
- Printing
- Welding
產品規格Specifications
Technical Specifications
| Type | Telescope of Galilean type (without internal focus) | |
| Input beam | - TEM00, Collimated or low divergent with full divergence angle ±5 mrad - Diameter < 24 mm - Optimum 2ω diameter for a Gaussian beam 8...12 mm (1/e²) |
|
| Output beam | - Collimated or low divergence - Profile is optimized for flat-top, doughnut spot in focal plane of a diffraction limited lens - Diameter < 24 mm |
|
| Other features | - Easy integration in equipment - Compact design suitable for scientific and industrial applications - Operation with diffraction limited focusing lens of any type - Easy alignment - Optimized to work with scanning optics: mirror scanners, F-Θ lenses |
|
| Overall dimensions | - Diameter 48 mm - Length < 139 mm |
|
| Mounting | External Thread M 27x1 | |
| Weight | 400 g | |
| Focal-πShaper 12_CO2 features | ||
| Model | Focal-πShaper 12_CO2_10.6 | Focal-πShaper 12_CO2_9.4 |
| Optimum spectral range | 10.5 - 10.7 μm | 9.3 - 9.5 μm |
