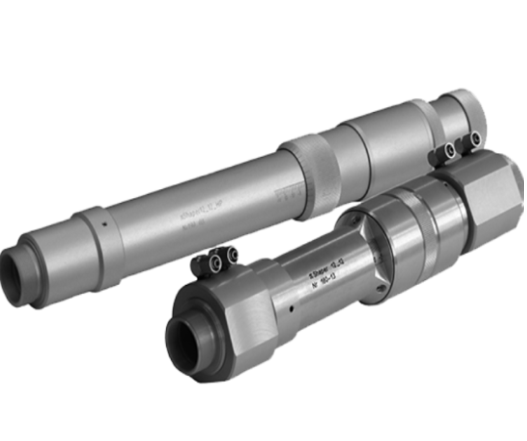

- PiShaper 12_12 Series
- Model: 12_12 Series
- 品牌: Adloptica
.png)
產品特色Features
High efficient laser beam shaping systems for UV, Visual and NIR
Most important specific needs of applications based on the UV-lasers as well as Short-pulse Ti:Sapphire lasers are taken into account while developing the πShaper 12_12 systems.
Applications:
Applications:
- Free Electron Lasers
- Fluorescence Technologies
- Flying Plate Technique
- Display Making Technologies
- Mass-Spectrometry
- Ultrashort Pulse Laser Pumping
- MOPA Techniques
- Material processing
產品規格Specifications
Technical Specifications
| Common for all πShaper 12_12 models | |||||
| Input beam | TEM00 or multimode with Gaussian or similar intensity profile | ||||
| Output beam |
|
||||
| Other features |
|
||||
| Mounting |
|
||||
| πShaper 12_12 features | |||||
| Model* | Input 1/e² Ø, mm | Output FWHM Ø, mm | Optimum spectrum, nm | Dimentions D / L, mm |
Applications based on |
| _1064 | collimated Ø 12.8 - 13.0 |
12.4 | 1020 - 1100 | 49 / 270 | Nd:YAG, Fiber lasers, Other NIR Lasers |
| _1064_HP | collimated Ø 12.0 - 12.1 |
12.0 | 42 / 328 | ||
| _1064_HP_W | collimated Ø 12.0 - 12.1 |
12.0 | 49 / 360 | High-Power USP lasers Water cooled system |
|
| _1064_C | divergent Divergence 58 mrad |
12.0 | 42 / 285 | Nd:YAG, Fiber lasers, Other NIR Lasers |
|
| _TiS_HP | collimated Ø 12.0 - 12.1 |
12.0 | 700 - 900 | 42 / 328 | Ti:Sapphire lasers, Other NIR Lasers |
| _532 | collimated Ø 12.8 - 13.0 |
11.8 | 515 - 550 | 49 / 270 | 2nd Harmonic Nd:YAG, Visible Lasers |
| _532_HP | collimated Ø 12.0 - 12.1 |
11.8 | 42 / 328 | ||
| _355_HP | collimated Ø 12.0 - 12.1 |
11.3 | 330 - 380 | 42 / 328 | 3rd Harmonic Nd:YAG, UV Lasers |
| _325 | collimated Ø 12.7 - 12.9 |
11.4 | 305 - 345 | 49 / 270 | UV Lasers |
| _266 | collimated Ø 12.6 - 12.8 |
10.6 | 250 - 270 | 49 / 270 | 4th Harmonic Nd:YAG, UV Lasers |
| _266_HP | collimated Ø 12.0 - 12.1 |
10.6 | 42 / 328 | ||
| _266_C | divergent Divergence 60 mrad |
12.0 | 42 / 285 | ||
| * - Basic models are Telescopes of Galilean type (without internal focus), Models with index _HP are versions for high peak power lasers, Models with index _C are Collimators without internal focus. |
|||||
