專業Pockels Cell Drivers廠商
- Pockels Cell Drivers
- Model:
- 品牌: Gooch & Housego
|
如果您對Pockels Cell Drivers的產品規格不熟悉，請您點擊以下連接填寫 POCKELS CELLS Drivers-Q&A表單，我們會盡快為您提供更多的相關資訊。 |

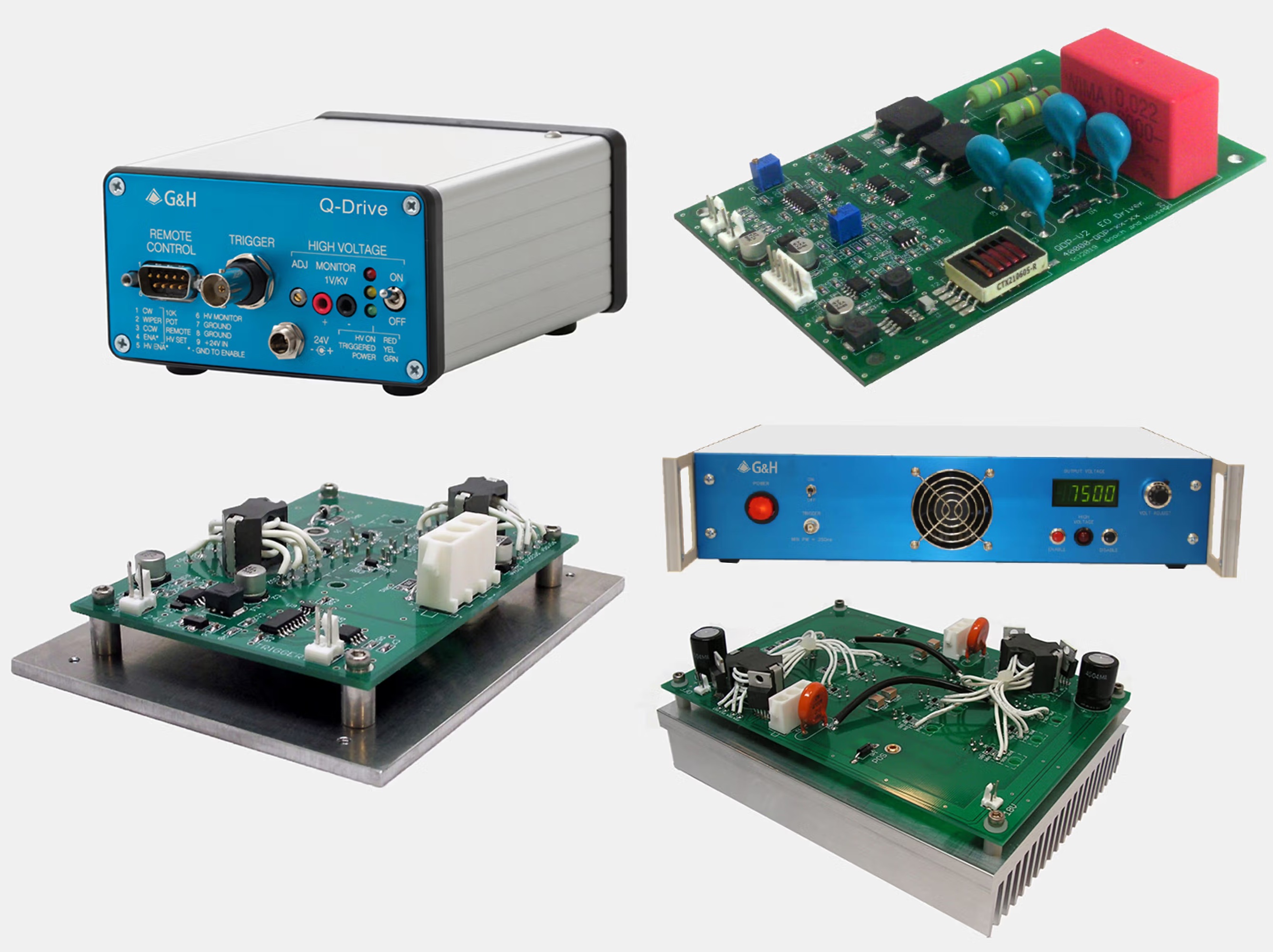

Pockels cell drivers supply Pockels cells with the high voltage required to operate.Our Pockels cell
drivers complement our range of Pockels Cells, with high-quality components integrated into our
designs to maximize lifetime, safety, and reliability.
Pockels Cell Drivers
| Product | Rise / Fall Time | Voltage Output | Repetition Rate |
|---|---|---|---|
Q-Drive™ BenchtopPockels Cell Driver
|
4 - 7 nS |
1.5 - 4.5 kV |
1 - 4.5 kHz |
Q-Drive™ OEMPockels Cell Driver
|
4 - 7 nS |
1.5 - 4.5 kV |
1 - 4.5 kHz |
QDP-50™ OEM Q-Drive for Flash Lamp Pumped Lasers
|
|
1.2 - 4 kV |
1 - 4.5 kHz |
QDP-DT™ OEM Q-Drive for Flash Lamp Pumped Lasers
|
Rise time: 3.5 kV, 6 pF min: 1 µs, 3.5 kV, 6 pF min: 5 µsFall time:3.5 kV, 6 pF max: < 12 ns |
1.2 - 4 kV |
0 - 50 kHz |
VR-Drive OEM Rack-Mount Pockels Cell Drive
|
2.0 kV, 6 pF: Max: 6.0 ns, 2.0 kV, 40 pF max load: Max: 9.5 ns |
0 - 2.5 kV |
0 - 200 kHz |
HVR-Drive™ Rack-Mounted Pockels Cell Driver
|
10-15ns |
1 - 7.5 kV |
0 - 200 kHz |
HVR-Drive™ Pockels Cell Driver
|
Min: 10 ns, Max: 15 ns |
1 - 7.5 kV
|
0 - 200 kHz
|
|
如果您對Pockels Cell Drivers的產品規格不熟悉，請您點擊以下連接填寫 POCKELS CELLS Drivers-Q&A表單，我們會盡快為您提供更多的相關資訊。 |
