專業8NSC - Nano Stages Controller廠商

		Closed Loop Feedback
		DAC
		USB / RS-232C communication
		Synchronization OUT
		High Voltage Amplifier -5/150 V
		NSpec Software

8NSC controller models lineup

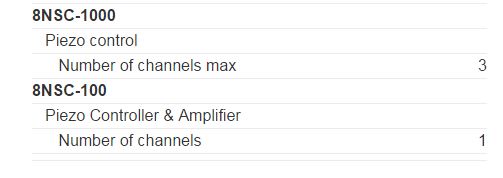

8NSC-1000 3 axis controller

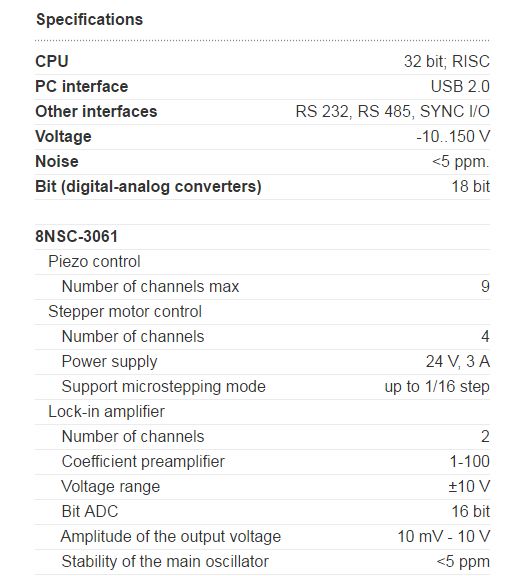

8NSC-3061 9 axis controller

8NSC-3061 SPM controller contains 2-channel lock-in amplifier to provide resonant SPM techniques, for example, non-contact SPM mode. Lock in amplifier includes high stable voltage generator based on digital frequency synthesizer.High-speed data processing is implemented using programmable logic (FPGA). This allows performing high-quality lock-in detection up to 1.5 MHz band.

8NSC-3061 can control 9 piezo stages and up to 4 stepper motor translation stages with micro step option, for instance, for rough adjustment of scanning head (stage). Whereas 8NSC-1000 is able to control 3 piezo stages.

Software
Basic N spec software, SDK for Windows, Linux, Mac OS, Android for Tablet PC.

8NSC-1000 schematic

8NSC-3061 schematic
