- Model: 10PSF9 - Focal Beam Profile Shapers
- 品牌: Standa
產品特色Features
 |
 |
Extremely efficient |
|
|
Easy adjustment |
|
|
Compact design |
|
|
Capability to work with scanning mirrors |

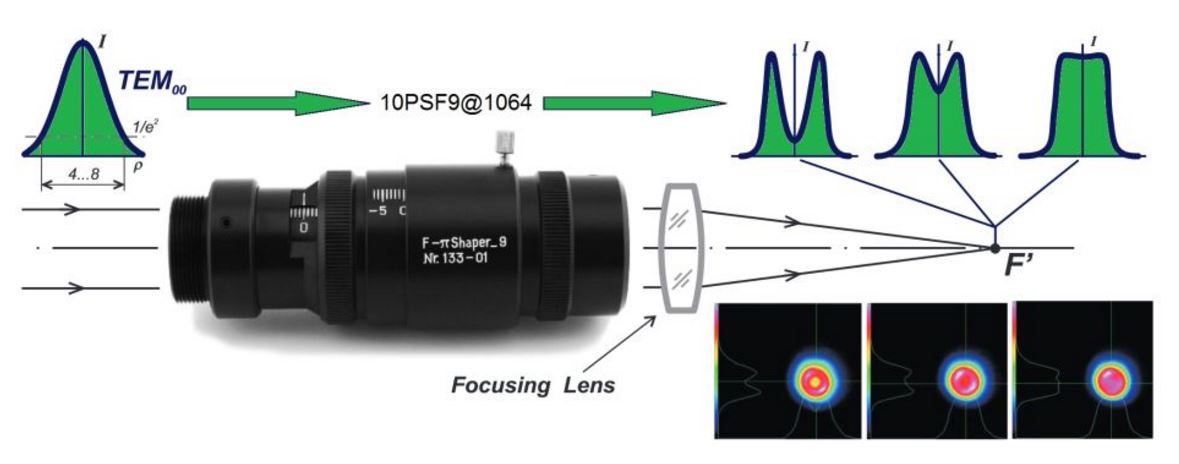

Using these unique tools the long-standing wish to manipulate the shape of focused beams becomes a reality. With nearly 100% efficiency Focal Beam Profile Shapers from series 10PSF9 produce various profiles: "Flattop", "Reverse Gauss", "Donut" "Trident".
Applications:
• Photovoltaics
• Marking and Engraving
• Drilling
• Scribing
• Dicing
• Material micromachining
• Printing
• Microwelding
Common specifications
| Type Input beam | Telescope of Galilean type (without internal focus) |
| Input beam | - TEM00 Collimated or low divergence - Diameter - Optimum 2w diameter for a Gaussian beam 4-8 mm (1/e2) |
| Output beam | - Collimated or low divergence - Profile is optimized for Intensity distribution manipulation in focal plane of a diffraction limited lens - Diameter |
| Overall dimensions | - Diameter 41 mm - Length 110 mm |
| Mounting | External Thread M27x1 |
| Weight | 200 g |
