- 10PS12_12 - Laser Beam Profile Converters
- Model: 10PS12_12 - Laser Beam Profile Converters
- 品牌: Standa
 |
 |
Extremely efficient |
|
|
Compact design suitable for scientific and industrial applications |
|
|
Basic models suitable for high peak power pulse lasers |
|
|
Long working distance |

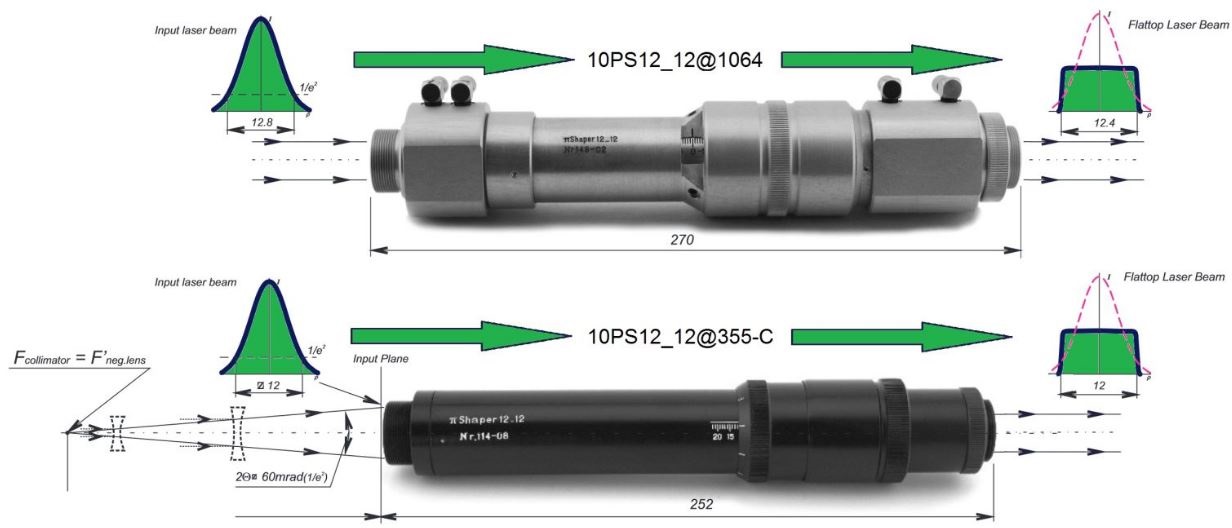

Using these unique tools it is possible to convert a single mode or multimode laser beam of similar to Gaussian intensity profile into a collimated Flattop beam with nearly 100% efficiency. Most important specific needs of applications based on the UV-lasers as well as Short-pulse Ti:Sapphire lasers are taken into account while developing the Laser Beam Profile Converter 12_12 systems.
Applications:
• Free Electron Lasers
• Fluorescence Technologies
• Flying Plate Technique
• Display Making Technologies
• Mass-Spectrometry
• Ultrashort Pulse Laser Pumping
• MOPA Techniques
• Material processing
Common specifications
| Input beam | TEM00 or multimode with Gaussian or similar intensity profile |
| Output beam | - Collimated - Flat-top (uniformity within 5%) - Diameter 12 mm - High edge steepness |
| Optional | - Water cooling for CW (or average) power >500 W - Protection windows |
| Mounting | Input: Outer Thread M27x1, Inner Thread M23x0.75 Output: Outer Thread M33x1, Adaptor M33x1 -> M27x1 (Outer) |
Basic models are Telescopes of Galilean type (without internal focus).
Models with ending -HP are versions for high peak power lasers.
Models with ending -C are Collimators without internal focus.
