Optogama Axicons ( Conical Lenses )代理

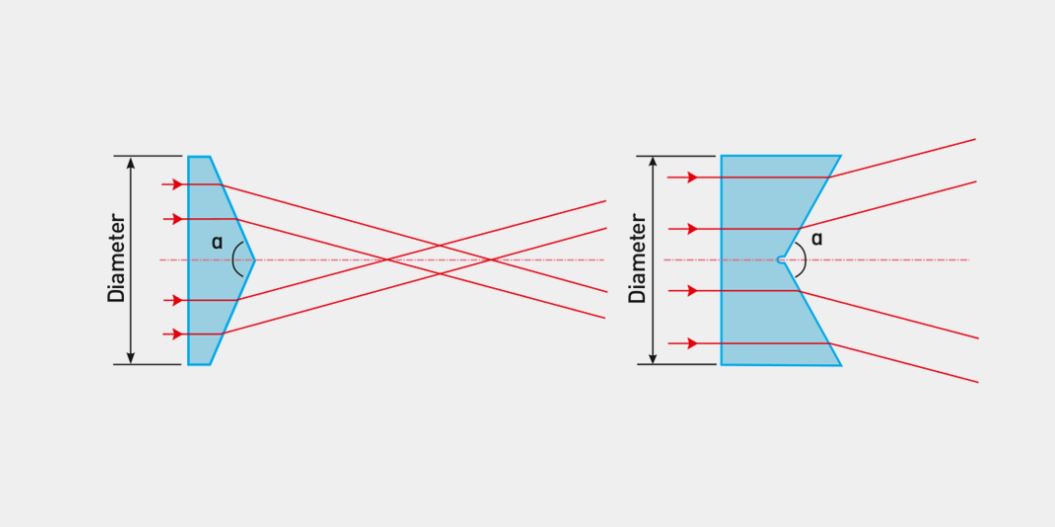

Axicons (conical lenses) are famous due ability to transform collimated Gaussian beam into approximation of non-difracting Bessel beam in the near-field and ring-shaped beam in the far-field. Most often they are used in tandem with other types of lenses. 4Lasers provide plano-convex and plano-concave design conical lenses. These lenses feature one convex surface or one concave conical surface, respectively, while second surfaces are plano in both cases.

Main features

• Fabricated from high-quality UV grade fused silica, BK7 glasses
• Plano-convex and plano-concave designs
• Regular and advanced grade axicons
• Wide axicon apex angle selection
• Antireflective coatings, customization available upon request

Application examples

• Corneal surgery
• Optical coherence tomography
• Atom trapping
