專業Z5A - 635nm/5mW廠商
- Z5A - 635nm/5mW
- Model: Z5A Belt-Aligner
- 品牌:Z-laser

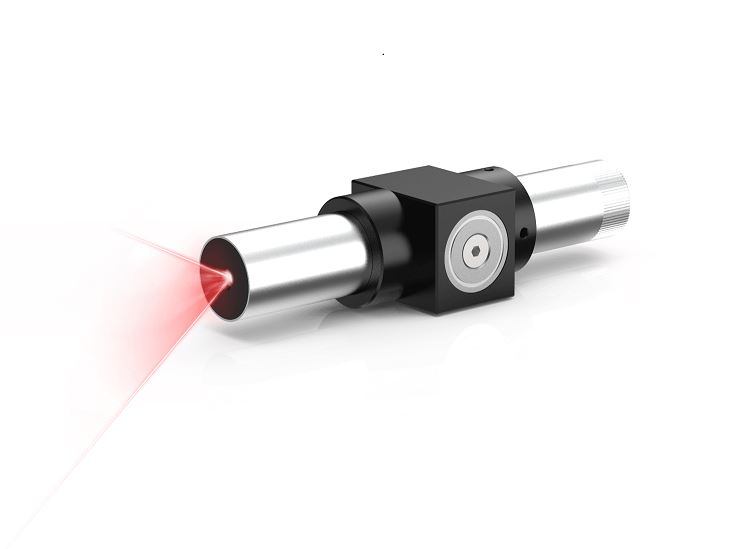

The Belt Aligner is a tool that has proven its worth a thousand times over for aligning drive wheels. It is based on a battery driven line laser from the ZAT series. It sits compactly and perfectly aligned in a specially designed mounting block. The red laser line runs exactly parallel to the magnetic contact surface. With the help of target markers, drive wheels and impellers can be safely aligned in an idle state.
Z5A應用範圍
| •Battery operated line laser in magnetic bracket | •1pc. levelling plate, magnetic |
| •4 pcs. measuring markers, magnetic, Aluminium | |
| •1 pc. battery (AA) | •Packed in a robust plastic case |
|
|
||
|
belt drive alignement tool |
very straight line |
highly accyrate positioning applications |
Z5A - 635nm/5mW
|
Weight |
250 g |
|
Dimensions |
124 × 20 mm |
|
Wavelength |
635 nm |
|
Output power |
5 mW |
|
Fan Angle |
90 degrees |
|
Projection |
line |
|
Focus |
fixed focus |
|
Diameter |
20 mm |
|
Supply voltage |
1,5V AA battery |
|
IP protection class |
|
|
Application |
定位 |
|
special applications |
Alignment of belt and chain drives |
