專業Lens Nozzle Assembly廠商

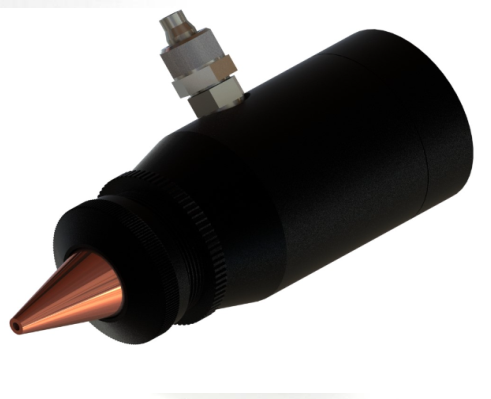

The lens nozzle assembly is the last component in the CO₂mpact beam delivery system using 19mm diameter ZnSe lenses coated AR/AR. Four different focal lengths are available as standard; 38, 63, 100 and 127mm. The lens is mounted in a separate cell, which allows for easy removal and cleaning of both surfaces. Adjustment of the nozzle stand-off is independet, giving a total of ± 3 mm. The gas inlet is via a standard 6/4 pipe fitting.

            •   Easy cleaning of both surfaces

          •   ±3mm adjustable stand-off

          •   Additional focal lengths available upon request

          •   Available for 10.6 µm and 9.3 µm
