Optogama Dispersing Prisms代理

4Lasers standard uncoated isosceles dispering prism are fabricated from UVFS, BK7, SF11 optical glasses and offer different dispersive properties. Used in both intra- and extra-cavity setups for ultrashort laser pulse temporal manipulation. Their construction enables to use them at Brewster angle, therefore p-polarized light losses are extremelly small.

Main features

• Fabricated from high-quality UV fused silica, BK7, SF11 glasses

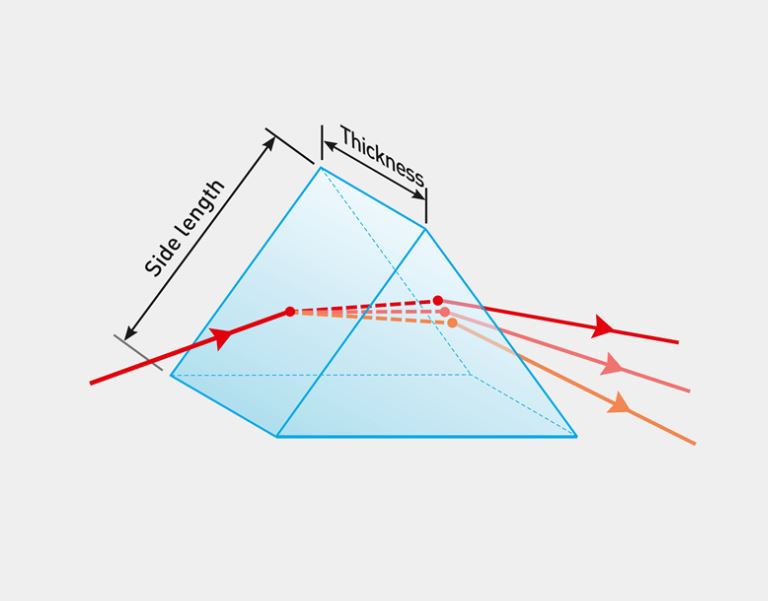

• Both AB faces are optically polished (refer to the drawing)
• Small losses for p-polarized light
• Group delay dispersion adjustment of ultrashort pulses
• Antireflective coatings, custom design, substrate material and dimensions available upon request

Application examples

• Compression of ultrashort laser pulses
• Dispersion compensation in mode-locked lasers
• Spatial separations of different spectral components
