976nm 雷射二極體

976nm laser diode

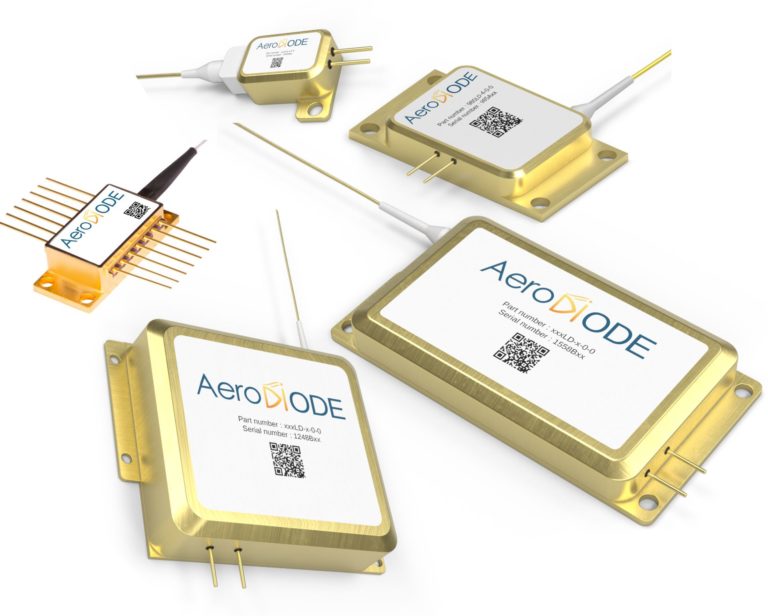

此為搭載光纖連接器的光纖耦合 976 nm 雷射二極體，提供單模及高功率多模版，可搭配 CW 或脈衝雷射二極體驅動器使用。窄頻寬輸出設計適合 Yb³⁺ 或 Er³⁺ 摻雜光纖的泵浦應用，並採用 Bragg 光柵技術。單模採用 FC/APC 光纖連接器，在奈秒級脈衝模式下，光纖輸出峰值功率最高可達 1200 mW，脈衝寬度最短可達 1 ns；多模採用高功率 SMA905 光纖連接器，可提供最高 140 W 的 CW 連續波輸出，搭配 106 µm 芯徑、NA=0.22 的多模光纖。

產品特色

所有版本皆採用光纖耦合設計
共提供 5 種型號，包括 1 款單模及 4 款高功率多模版本
單模版本 CW 連續波輸出功率最高可達 250 mW；多模版本最高可達 100 W
單模版本光纖輸出峰值功率最高可達 600 mW
單模版本脈衝寬度最短可達 1 ns
提供低雜訊 CW 連續波輸出

976 nm Laser diode + driver solutions :
	976 nm Laser Diode version :	Laser Driver version :
	976 nm Laser Diode version :	CW Driver (for singlemode diodes : CCS-CW is the open driver and CCSI-CW is the integrated version)	Pulse & CW Driver (from 1 ns to CW : CCS is the open driver and CCSI is the integrated version)	User design pulse shape Driver (SHAPER open driver from 0.5 ns to 8 µs)	Multimode diode Driver (High power driver for 10 to 150 W diodes : CCM is the open version, CCMI is the integrated version)
Output Power (CW regime (typ)	1- Singlemode 500 mW	500 mW	500 mW	No	Not compatible
	2- Singlemode 1000 mW	900 mW	450 mW (std)/ 900 mW (UHP version)	No	Not compatible
	3-6 : Multimode 10 W / 30 W / 60 W / 140 W or 180 W	Not compatible			Respectively 10 W / 30 W / 60 W / 140 W or 180 W
Output power - Pulse regime (typ)	1 - Singlemode 500 mW	No	1000 mW	800 mW	Not compatible
	2- Singlemode 1000 mW	No	1500 mW	900 mW	Not compatible
	3-6 : Multimode 10 W / 30 W / 60 W / 140 W or 180 W	Not compatible			Respectively 10 W / 30 W / 60 W / 140 W or 180 W
User design nanosecond pulse shape (integrated AWG)		No (CW driver)	No (On-Off driver)	Yes	No
Laser diode T° range		15 - 50 °C			15 - 40 °C
Pulse duration (Ext pulse trigger)			0.5 ns - CW	0.5 ns - 8 µs	10 µs - CW
Pulse duration (Internal pulse generator)			0.5 ns - 500 ns	0.5 ns - 8 µs	No
Typ rise/fall time ; Min pulse duration			3 (ns/A) ; 1.5 ns	< 1 (ns/A) ; 1 ns	few µsec
Internal rep rate adjustment			1 Hz - 4 MHz (250 MHz option)	1 Hz - 20 MHz	No
Temporal jitter			< 20 ps	< 2 ns
Adjustable CW current offset in pulse regime			(Optional)	No	Yes (extrenal mode)
Interface/GUI/libraries		USB - Windows 7/10 - DLLs - Hexa/Linux - Labview - Python
Power supply		110/220 V power supply is included	This module requires an external 24 V power supply
